I/O Station
Each control and expansion module has an I/O Station located on the right side of
the front of the unit and is used for inserting/removing data and cleaning
cartridges into and out of the library.
Each module's I/O Station must be locked in order for the library to function
properly. When the library is busy performing a task, such as retrieving a
cartridge, the library locks all I/O Station doors. The doors cannot be opened until
the library is no longer busy. If the library detects that an I/O Station door is either
open or unlocked, the library cannot operate normally.
a66mi032

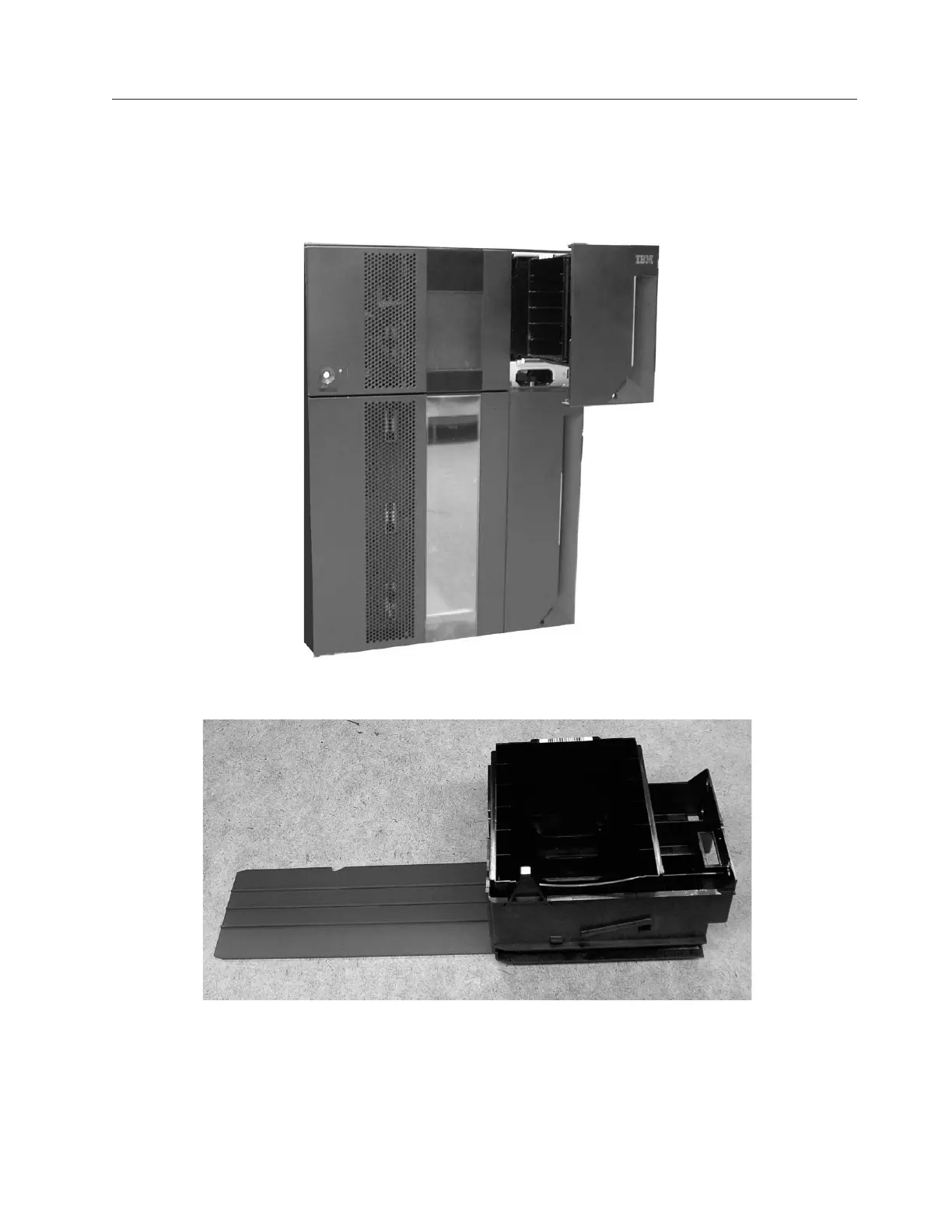

Figure 8-31. 14U library with control module I/O Station open
a66mi049
Figure 8-32. Control module I/O Station
