IBM TS3310 User Manual

Checking/Reseating Cables
External Cables
To check or reseat external library cables and terminators, perform the following
steps:
1. Locate the cables and terminators by referring to the example figures below.
1 Module
communication
terminator
3 Module communication
terminator
5 Power cord
2 Ethernet cable
(customer
supplied)
4 SCSI terminator 6 SCSI drive cable
1
2
3
4
5
6
a66ug024

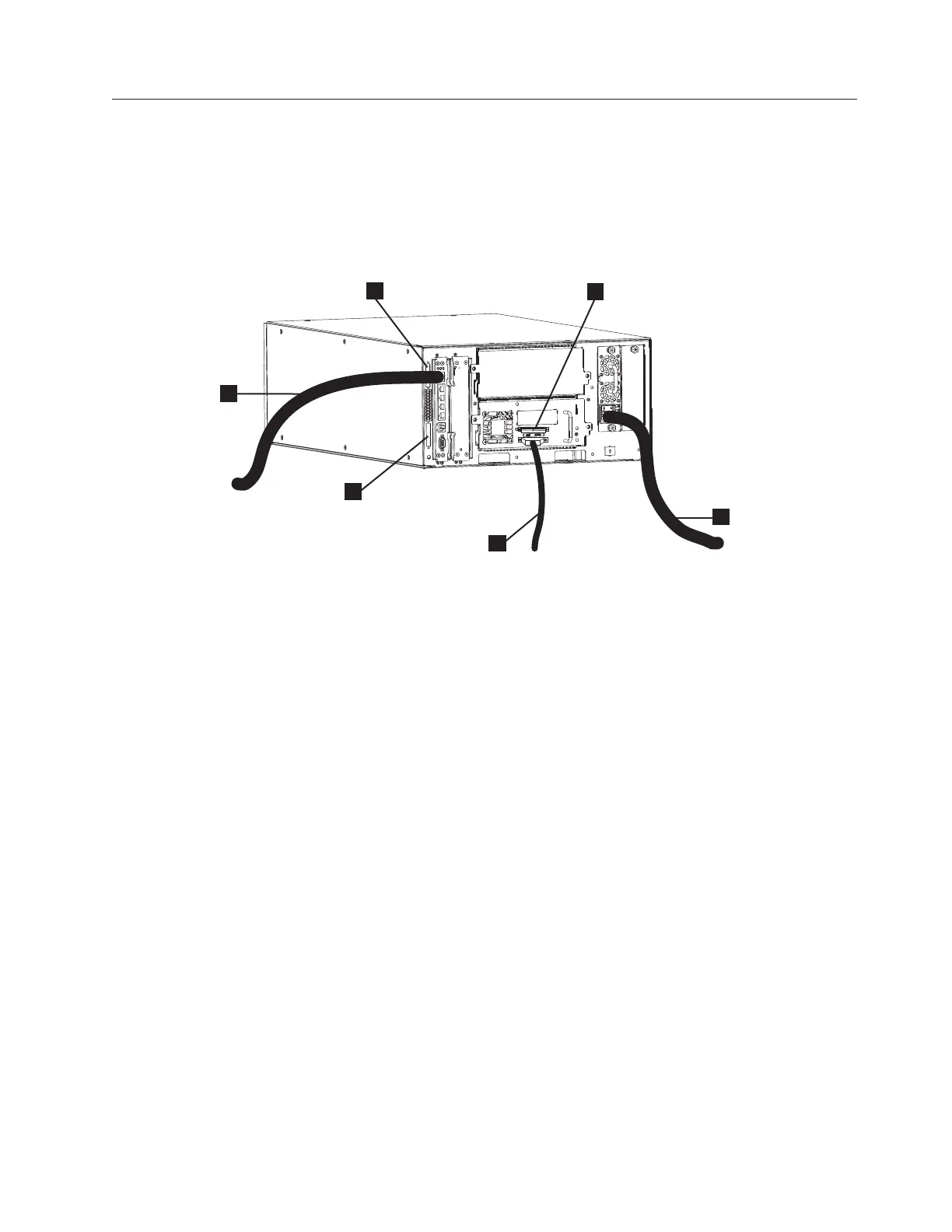

Figure 7-7. Cabling of a 5U Library with SCSI Drives
Chapter 7. Service Procedures 7-29

IBM TS3310 Specifications

General

Form Factor	Rack-mountable
Tape Technology	LTO Ultrium
Product Type	Tape Library
Interface	Fibre Channel
Expansion	Expandable with additional modules
Supported Tape Technology	LTO Ultrium 5, LTO Ultrium 6
Weight	120 lb (54.4 kg) (fully configured)
Power Supply	Dual redundant power supplies
Operating Temperature	41°F to 95°F (5°C to 35°C)
Non-operating Temperature	-40°F to 140°F (-40°C to 60°C)
Humidity	20% to 80% non-condensing
