Rear Panel Components
The library has the following rear panel customer replaceable units (CRUs):
v Drive Sled
v Library Control Blade (LCB)
v Library Power Supply
Drive Sled
Tape drives mounted in sleds are installed into tape drive slots in the rear of the
library.
Removing a Drive Sled
Important: If removing more than one drive sled at a time, record the locations of
each drive before they are removed. Ensure that the drives are
reinstalled in the correct location.
1. Vary all drives offline from the host.
v From the Operator Panel, select Operations → Change Drive Mode.
v From the Web User Interface, select Manage Drives → State (Online/Offline)
.
2. Disconnect the drive cable and place it on a flat surface in a secure location to
avoid damaging the cable.
a66mi023
2
3
4
5
1

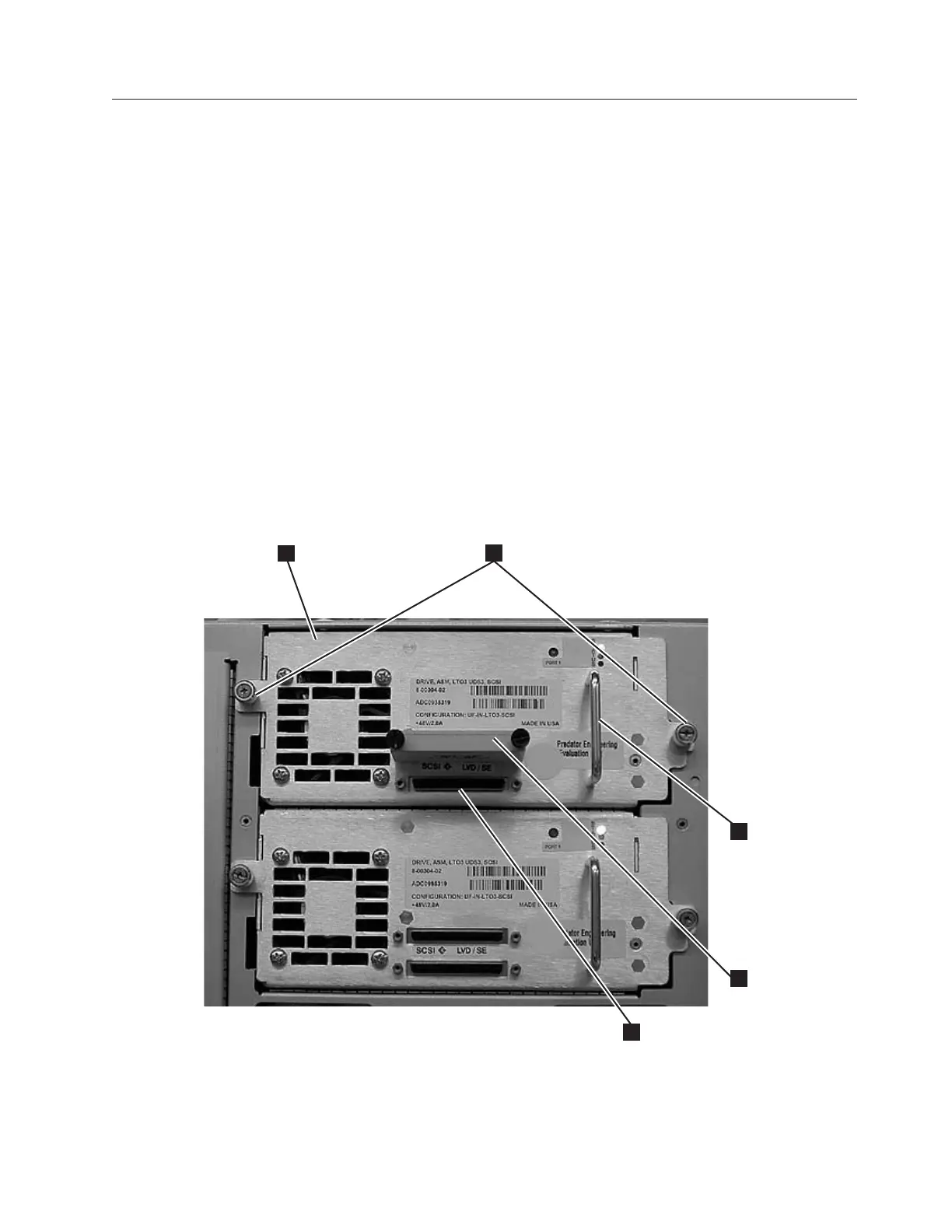

Figure 8-46. Drive sled (detail)
Chapter 8. Add, Check, Adjust, Remove, and Replace Procedures 8-43

IBM TS3310 Specifications

General

Form Factor	Rack-mountable
Tape Technology	LTO Ultrium
Product Type	Tape Library
Interface	Fibre Channel
Expansion	Expandable with additional modules
Supported Tape Technology	LTO Ultrium 5, LTO Ultrium 6
Weight	120 lb (54.4 kg) (fully configured)
Power Supply	Dual redundant power supplies
Operating Temperature	41°F to 95°F (5°C to 35°C)
Non-operating Temperature	-40°F to 140°F (-40°C to 60°C)
Humidity	20% to 80% non-condensing
