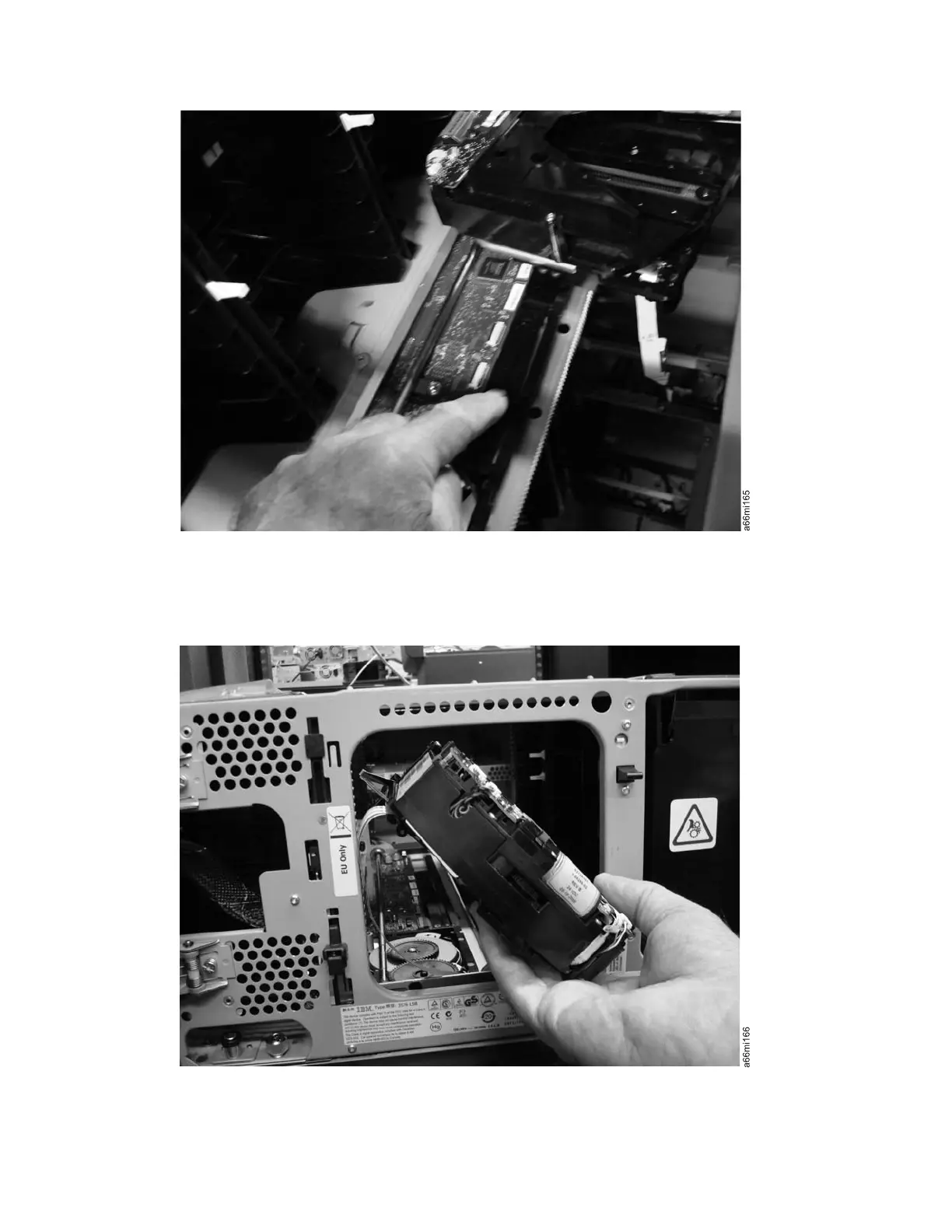

10. Carefully lift and tilt the Picker Assembly and pull it out the front door as
shown in Figure 8-97.
Figure 8-96. Close the cable protector
Figure 8-97. Remove the Picker Assembly
8-88 TS3310 Tape Library Maintenance Information
