5. Lift the M2 Robot Assembly as shown in Figure 8-90 to gain access to the
underside of the Picker Assembly.
6. Remove any media that is in the picker.

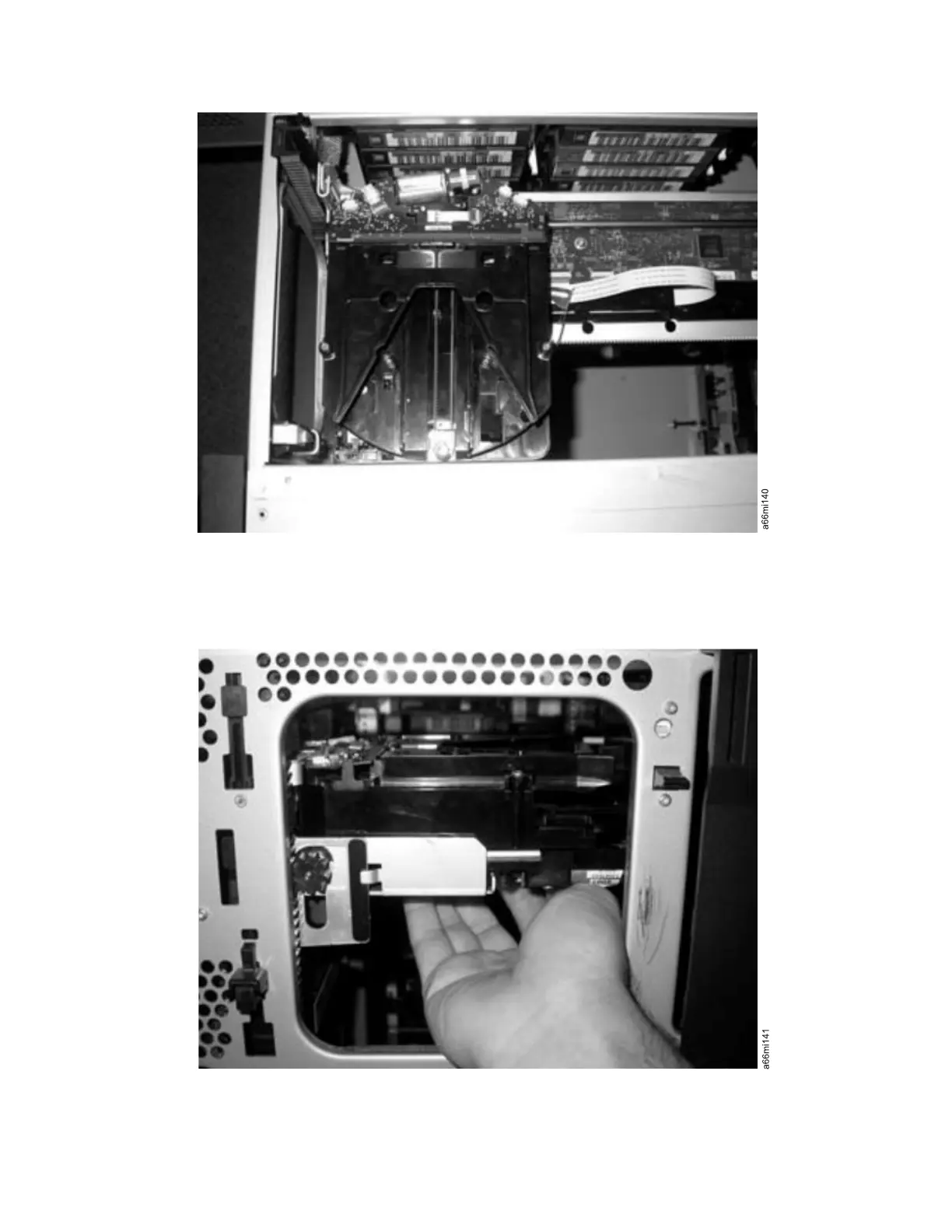

Figure 8-89. Rotate M2 Picker Assembly
Figure 8-90. Lift M2 Picker Assembly
