Replacing the M2 Robot Assembly
1. Ensure all gear racks are properly positioned and that they contain NO GAPS
between units in the library.
2. Set the M2 Robot Assembly on top of the control module as shown in
Figure 8-70 on page 8-68.
3. Remove the Cable Spool connector (3 in Figure 8-71) from the black plastic
peg (2 in Figure 8-71).
4. Carefully lift the Cable Spool connector.
a66mi012
4
3
1
2

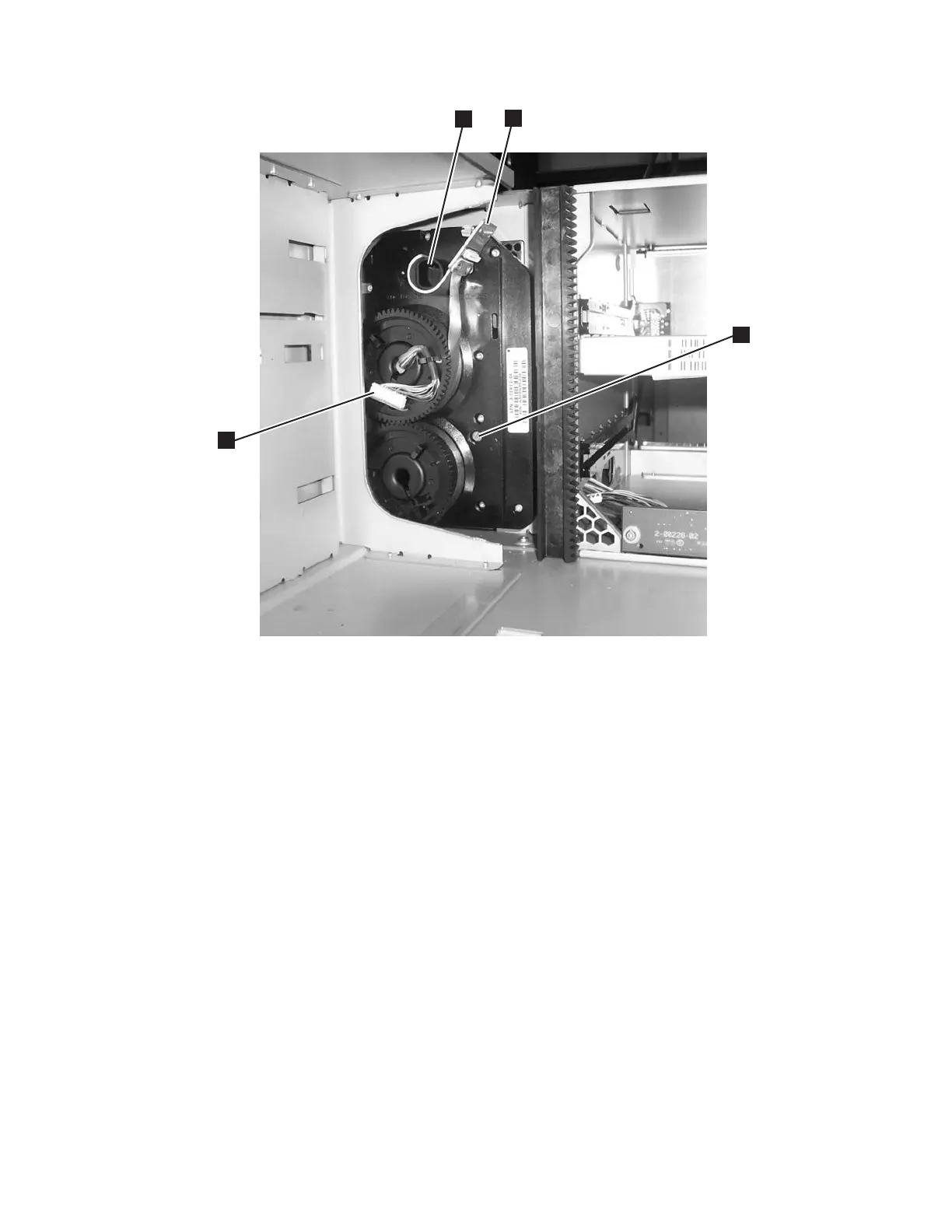

Figure 8-71. Cable Spool (with storage columns removed)
Chapter 8. Add, Check, Adjust, Remove, and Replace Procedures 8-69
