4. Visually check, and reseat if necessary, all of the connectors on the back of the
Backplane Connect Board. See 1, 2, 3, and 4 in Figure 7-13.
a66mi083
2
3
1

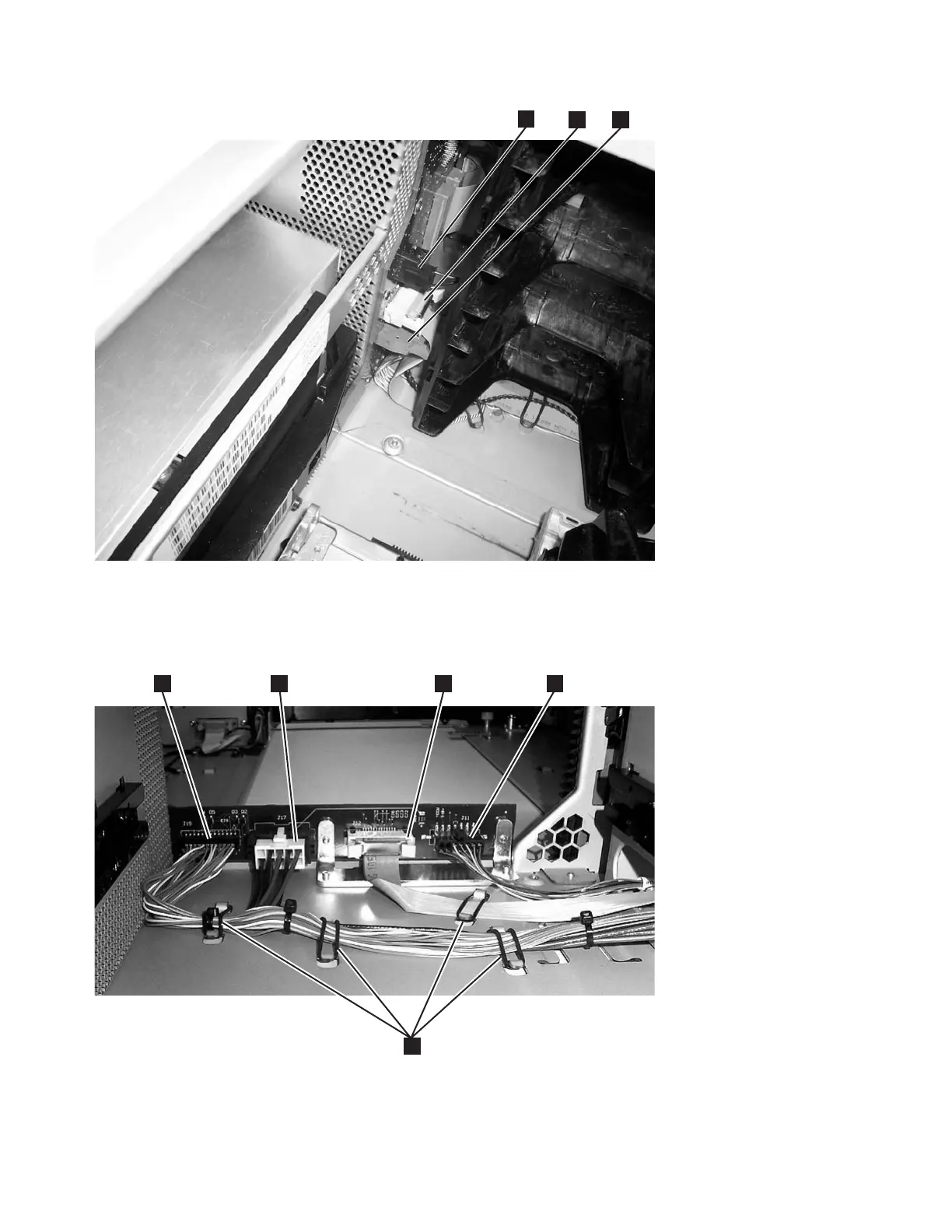

Figure 7-12. Backplane Connect Board connectors (front, top cover removed)
a66mi100
1
3
2 4
5
Figure 7-13. Backplane Connect Board connectors (back, drive sleds removed)
7-34 TS3310 Tape Library Maintenance Information
