Each button has three states indicated by color. The three states are:
v Good - green
v Degraded - yellow (An operator intervention has been created.)
v Investigate - red (An operator intervention has been created; however, the
library may still be operational.)
Keyboards
When a user touches a text box requiring data entry, a keyboard screen appears.
Either the alphabetic or numeric keyboard appears, depending on the type of input
field. All alphabetic character entries are lower case. The text box appears at the
top of the screen and the number/characters appear as they are entered. The 123
button opens the numeric keyboard from alphabetic keyboard, The abc button
opens the alphabetic keyboard from the numeric keyboard. The back arrow erases
one character at a time.
Attention: To use the touchscreen effectively, tap lightly to make your selections.
Home Page
The Home Page screen provides tabular data on the capacity of the various areas
of the library. Use this screen to see a quick summary of the capacity of the
selected logical library based on a user login.
If users have access to more than one logical library, they can navigate to other
logical libraries using arrows next to the logical library name at the top of the
screen.
If an administrative user is logged in, a view of the physical library appears.
If a user is logged in, the first logical library that they have access to, in
alphabetical order, appears.
a66mi060

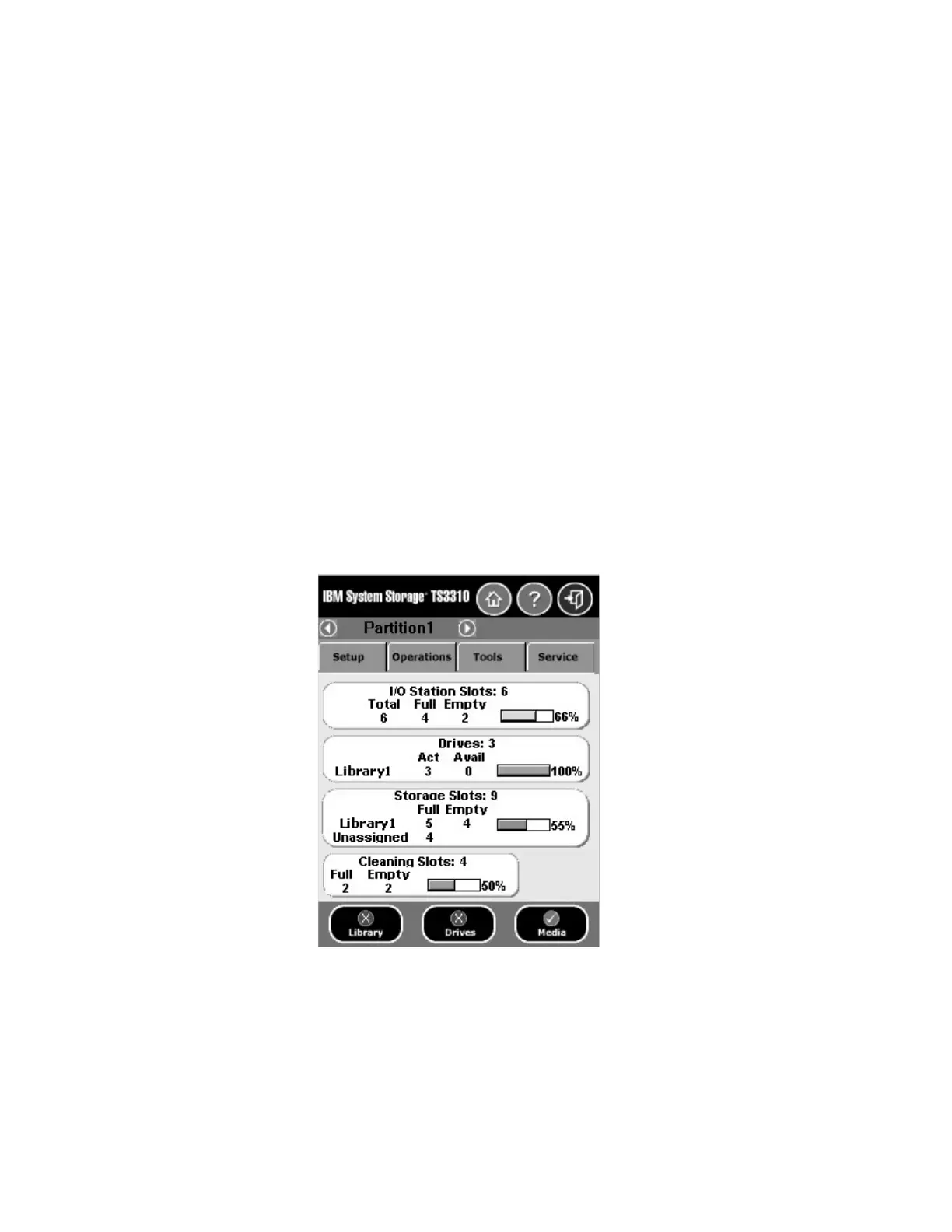

Figure 4-4. Home Screen Capacity View
4-4 TS3310 Tape Library Maintenance Information
