IBM TS3310 User Manual

3. If necessary, remove the I/O Station(s) from the library. See “Removing an
I/O Station” on page 8-35.
4. Rotate the M2 Picker Assembly so that it is facing the right side of the library,
and slide it all the way forward toward the front as shown in Figure 8-89 on
page 8-83.
a66mi053
1

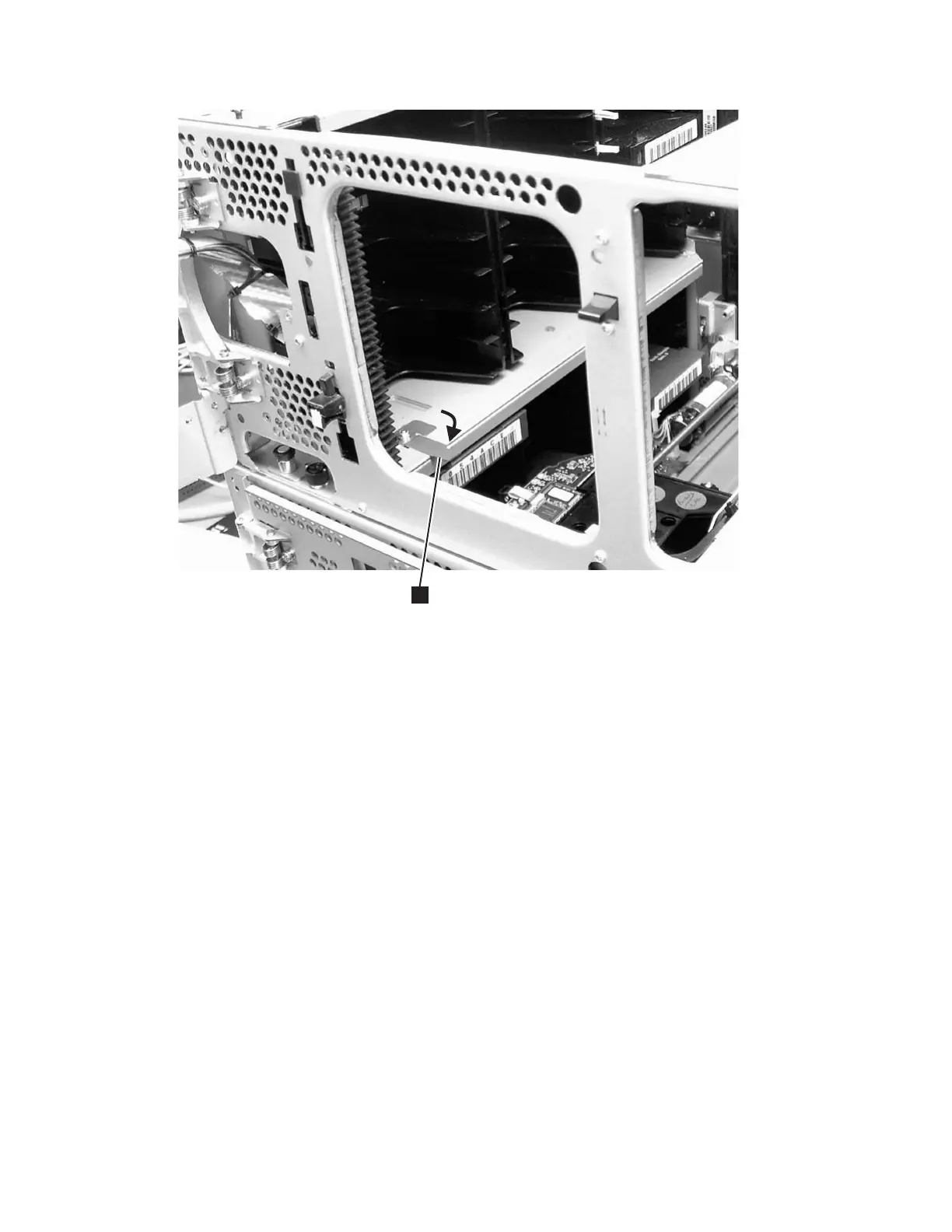

Figure 8-88. Picker locking mechanism
8-82 TS3310 Tape Library Maintenance Information

IBM TS3310 Specifications

General

Form Factor	Rack-mountable
Tape Technology	LTO Ultrium
Product Type	Tape Library
Interface	Fibre Channel
Expansion	Expandable with additional modules
Supported Tape Technology	LTO Ultrium 5, LTO Ultrium 6
Weight	120 lb (54.4 kg) (fully configured)
Power Supply	Dual redundant power supplies
Operating Temperature	41°F to 95°F (5°C to 35°C)
Non-operating Temperature	-40°F to 140°F (-40°C to 60°C)
Humidity	20% to 80% non-condensing
