1 Module communication
terminator
4
Module-to-module communication cable
2 Ethernet cable (customer
supplied)
5
Ethernet port (for IBM service personnel use)
3 Latches 6 Serial port (for IBM service personnel use)
3. Reconnect the Ethernet cable (2 in Figure 8-52) by pinching the tab and
pushing the connector into the LCB.
Note: Six slots reside below the Ethernet cable. The four topmost slots are
reserved for future use. The two bottommost slots are designated as
Ethernet (5 in Figure 8-52) and serial (6 in Figure 8-52) ports, and are
reserved for use by IBM Service Personnel.
4. Power ON the library and wait for it to initialize. This may take from 2 to 10
minutes, depending on the level of firmware on the Library. If the Compact
Flash Card is new and has never been initialized, see “Upgrading the Compact
Flash Card Firmware.”
5. Perform “Returning a Library or Library Module to Normal Operations after
Repairs” on page 8-4.
Upgrading the Compact Flash Card Firmware
If the Compact Flash Card is new and has never been initialized, it contains a
minimal level of library firmware which allows the library to boot up and display
an Upgrade Notification message. In order to use the library, you must upgrade to
the latest level of library firmware. Use the following steps to upgrade firmware
the first time you use a new Compact Flash Card.
1
2
4
5
6
a66ug014
3

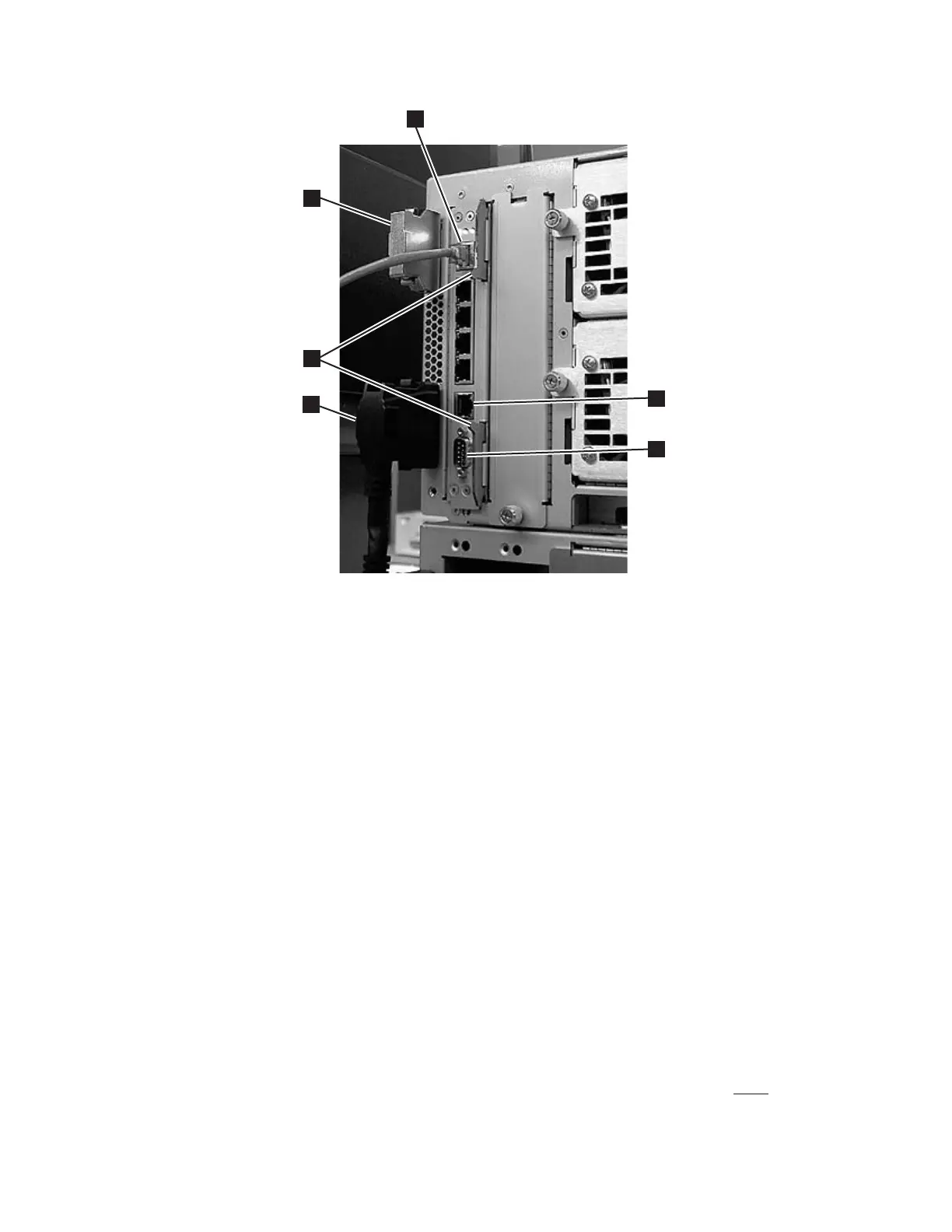

Figure 8-52. Library Control Blade (LCB)
Chapter 8. Add, Check, Adjust, Remove, and Replace Procedures 8-51
