Common Operator Panel Elements
Common Header Elements
All Operator Panel screens (except for the Login screen) contain the following
common elements in the header:
v Home (1 in Figure 4-3) - displays the default Capacity View screen.
v Help (2 in Figure 4-3) - context-sensitive help for the associated page
v Logout (3 in Figure 4-3) - ability to log out
v Logical Library Name - Displays the designation for the current logical library.
You can click the arrows on either side of the library designation to scroll
through other available logical libraries.
Note: When the library is busy performing certain tasks, a "Not Ready' message
will display alternately with the 'IBM TS3310' notation at the top of the
screen.
System Summary and Subsystem Status
The health of the library can be gauged by three subsystem status buttons located
at the bottom of the home page. These buttons provide easy access to the health of
the library for faster recovery if problems occur. You can select the buttons to view
detailed information about the library and gain access to library subsystems. The
three subsystems are:
v Library (4 in Figure 4-3)- opens the operator interventions for the library.
v Drives (5 in Figure 4-3)- opens the operator intervention screen for drives.
v Media (6 in Figure 4-3)- opens the operator intervention screen for media.
a66ug0
51
1
2
3
4
5
6
7

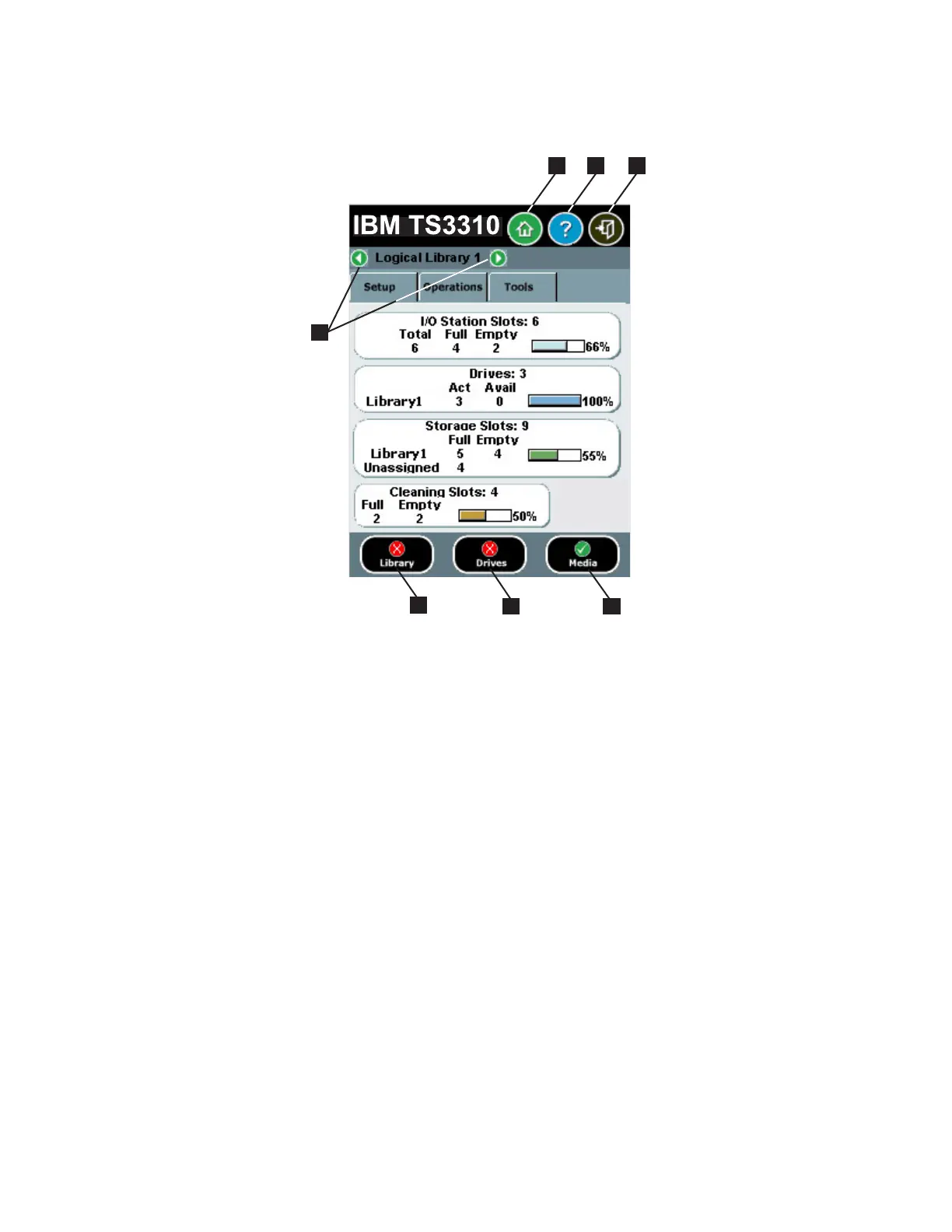

Figure 4-3. Operator Panel common header elements and subsystem status buttons
Chapter 4. User Interfaces 4-3
