4. Repeat this process for all units in the library, if necessary.
Verifying Front and Rear Gear Racks Alignment
In order for the picker to move from one unit to the next in a multi-module library,
the front (3 in Figure 8-18) and rear (1 in Figure 8-18) gear racks in the control
module must be properly aligned with the gear racks in the expansion module.
1
Rear gear rack
locking
mechanism
2 Magnification of
rear gear rack
locking
mechanism
3
Front gear rack

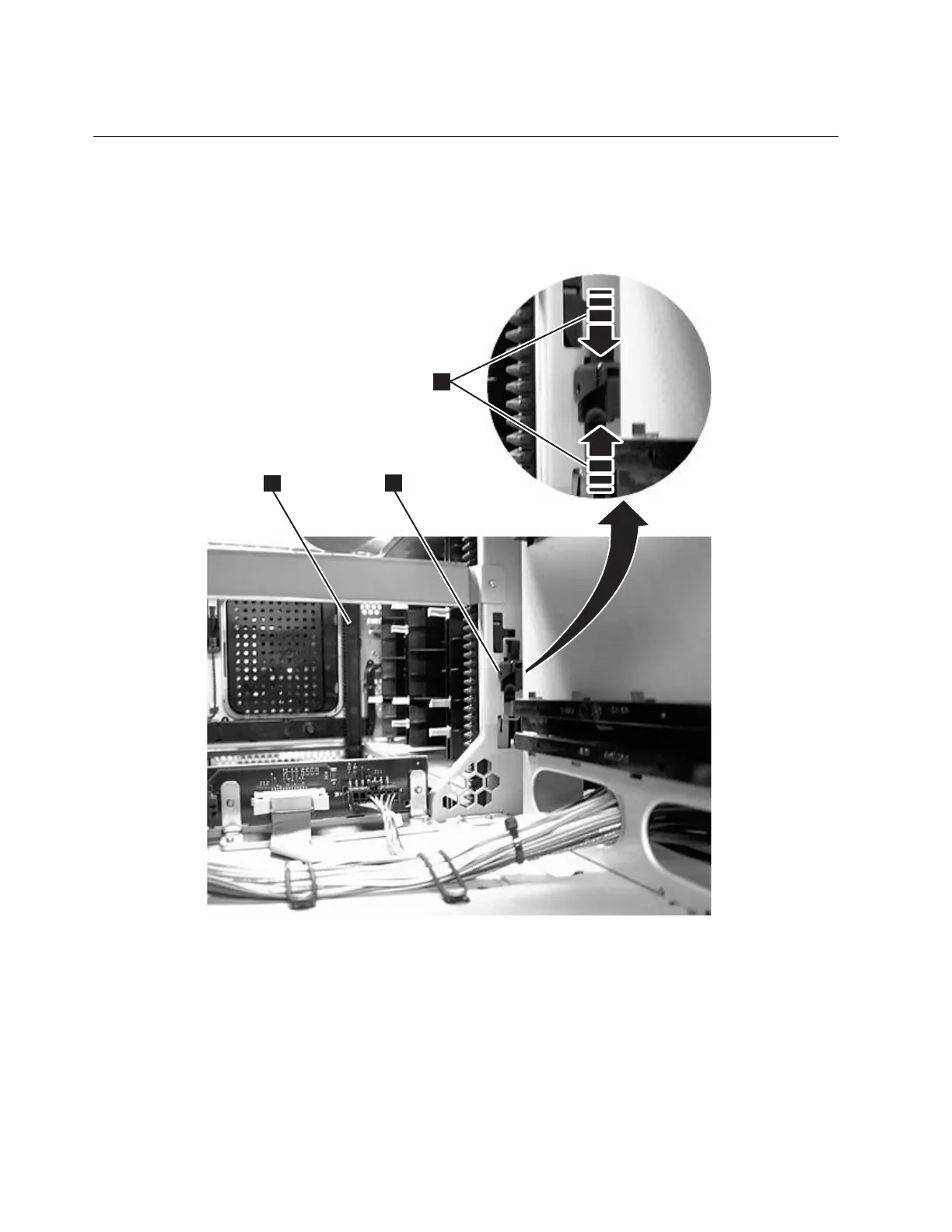

Verify that the front (3 in Figure 8-18) and rear (1 in Figure 8-18) gear racks are
properly aligned and positioned.
a66mi007
1
2
3
Figure 8-18. Gear rack
8-22 TS3310 Tape Library Maintenance Information

IBM TS3310 Specifications

General

Form Factor	Rack-mountable
Tape Technology	LTO Ultrium
Product Type	Tape Library
Interface	Fibre Channel
Expansion	Expandable with additional modules
Supported Tape Technology	LTO Ultrium 5, LTO Ultrium 6
Weight	120 lb (54.4 kg) (fully configured)
Power Supply	Dual redundant power supplies
Operating Temperature	41°F to 95°F (5°C to 35°C)
Non-operating Temperature	-40°F to 140°F (-40°C to 60°C)
Humidity	20% to 80% non-condensing
