3. Push the upper right hand corner of the flap to the left to remove the pivot pin
(1 in Figure 8-38) from the pivot hole (2 in Figure 8-38).
4. Move the flap to the right to remove the pivot pin (1 in Figure 8-39 on page
8-39) from the pivot hole (1 in Figure 8-39 on page 8-39). The flap can now be
a66mi117
2
1

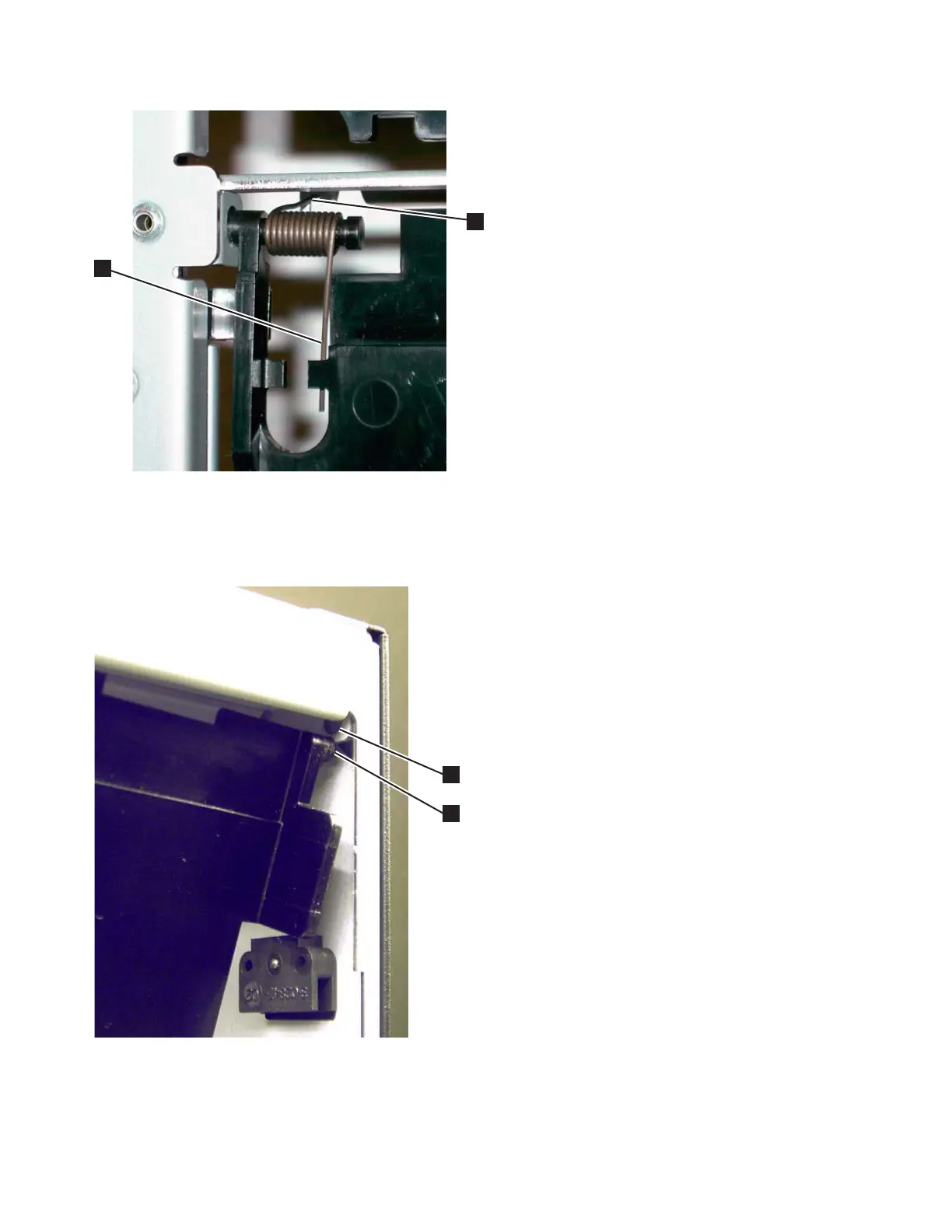

Figure 8-37. I/O Safety Flap Front Spring Wire
a66mi114
1
2
Figure 8-38. I/O Safety Flap Pivot Pin
