Important: Remember the order in which the columns were removed. Replace
the columns in their original location.
4. Pull the storage column toward the front of the library (1 in Figure 8-109) to
disengage the locking tabs on the back of the column.
5. Pull the column straight out of the side wall of thechassis.
6. Repeat this procedure for each column.
Replacing a Storage Column
1
Control module/left front
column
7 Expansion module/left front column
a66mi020
1

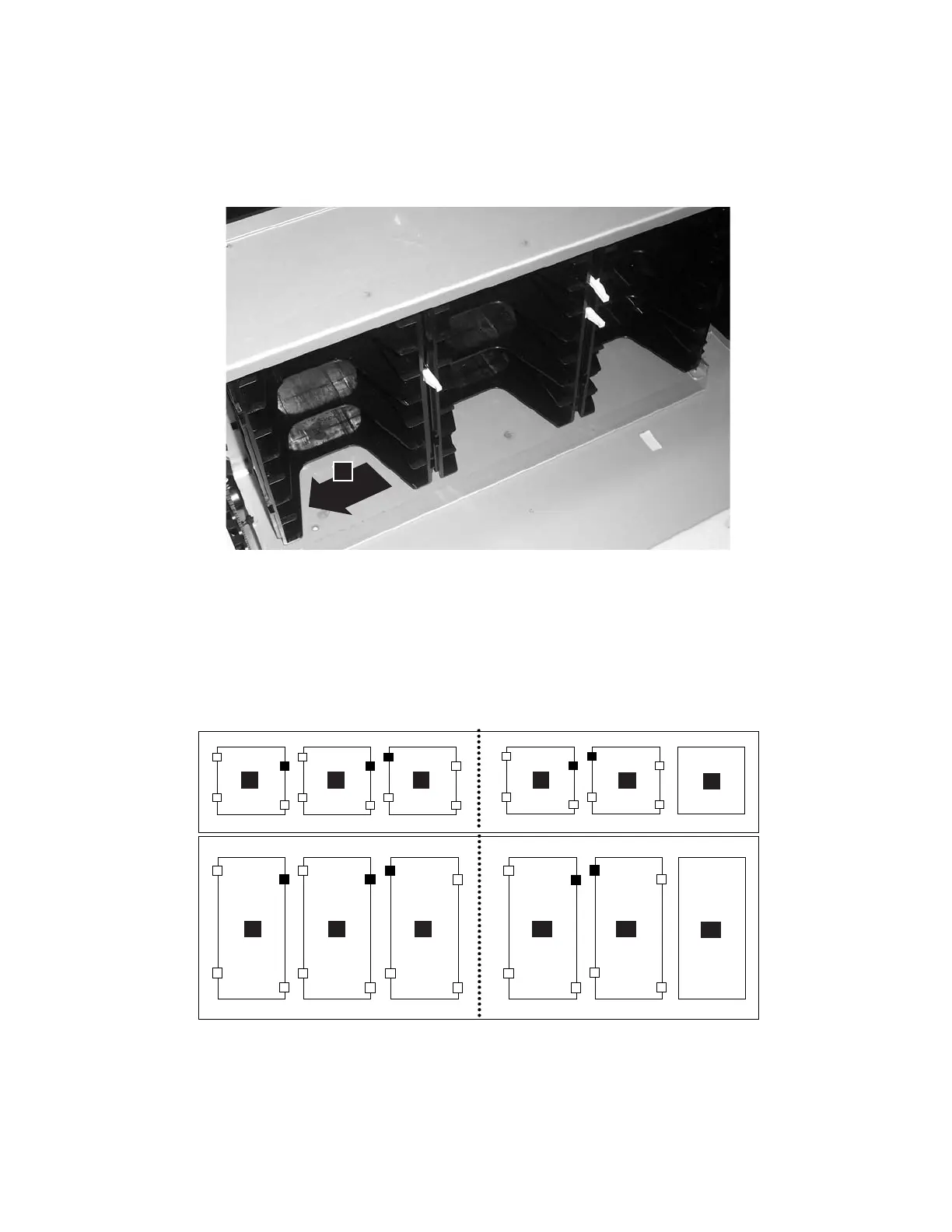

Figure 8-109. Removing a storage column
1
2
3
4
5
6
7
8
9
10
11
12
a66mi071
Figure 8-110. Correct fiducial placement
Chapter 8. Add, Check, Adjust, Remove, and Replace Procedures 8-97
