c. Remove the cable retainers (5 in Figure 8-128 on page 8-117 and 6 in
Figure 8-129 on page 8-117).
Note: The cable retainers may be black rubber 'O' rings as shown, or white
plastic beaded cable ties. If they are the white cable ties, it will be
necessary to cut them off and replace them with new cable retainers
included in the new FRU kit.
a66mi104
1

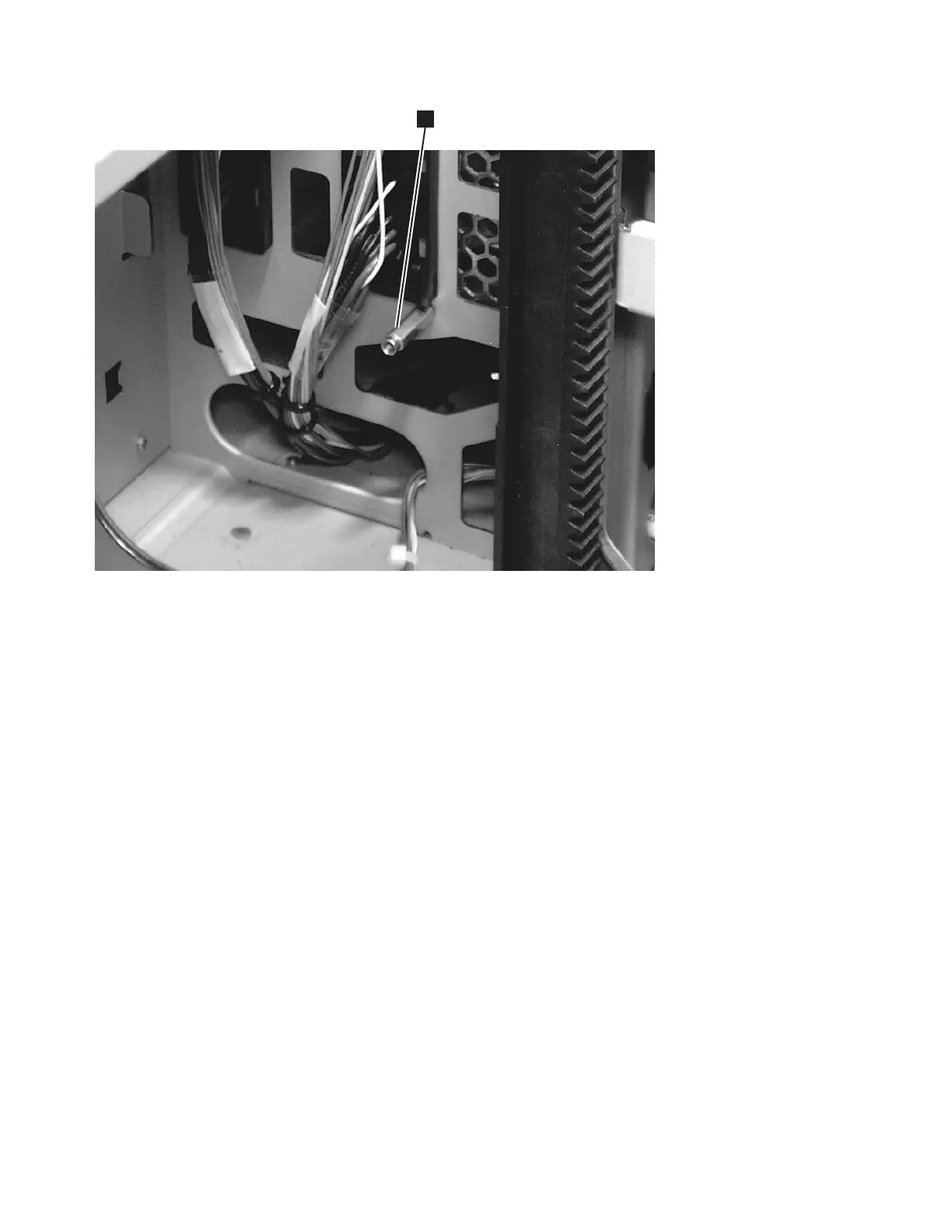

Figure 8-127. Hex stand-off behind the Cable Spool Assembly
8-116 TS3310 Tape Library Maintenance Information
