7. Locate the release lever (1 in Figure 8-91) on the under side of the Picker
Assembly and pull it forward. While holding the release lever forward, lift up
on the right side of the Picker Assembly and lift it off of the M2 Robot
Assembly (see Figure 8-92 on page 8-85).
Note: The flex cables are still attached to the Robot Controller Board.

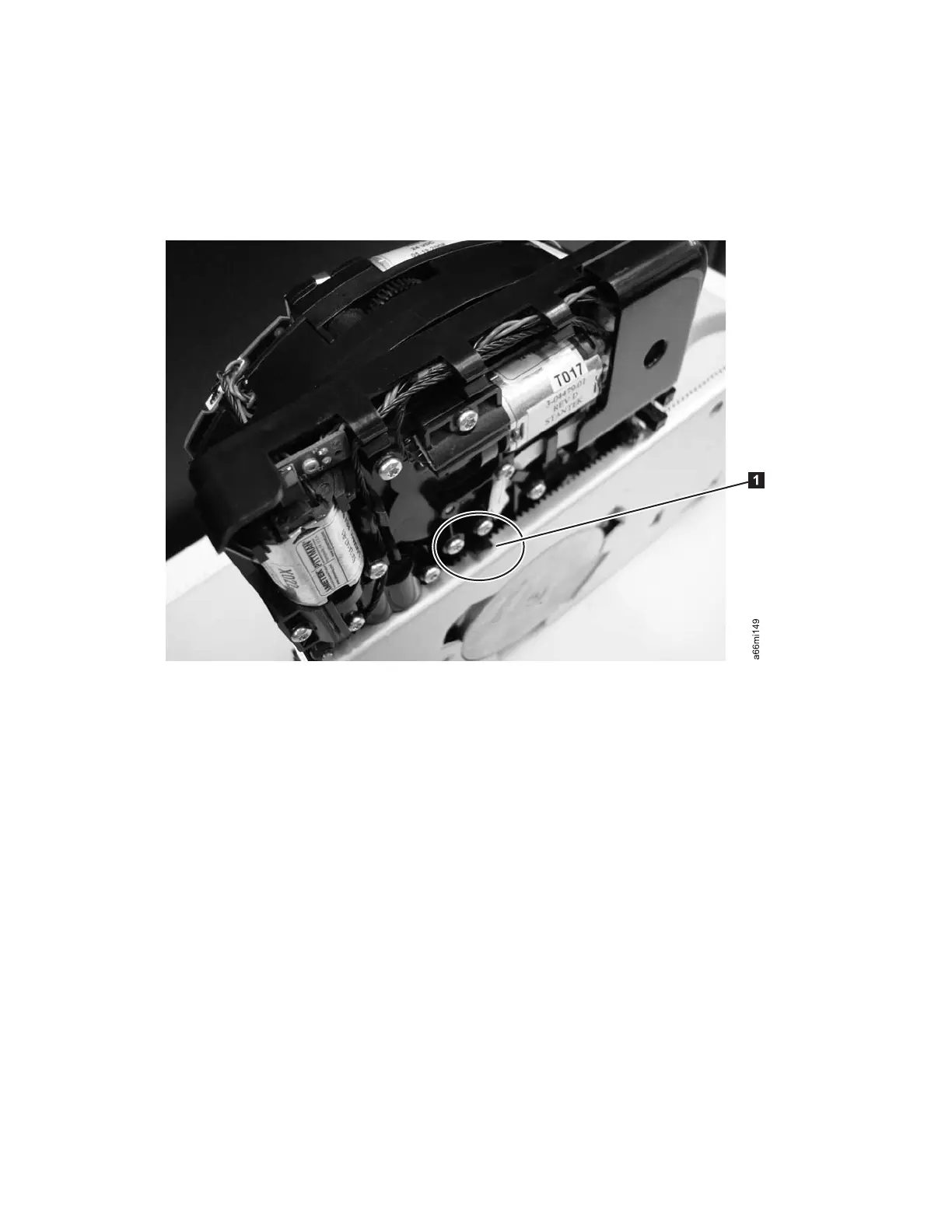

Figure 8-91. Close-up of the release lever
8-84 TS3310 Tape Library Maintenance Information
