d. Close the cable protector. (See Figure 8-103.)
3. Connect the Picker to the M2 Robot Assembly.
a. Position the Picker Assembly at the front of the M2 Robot Assembly.

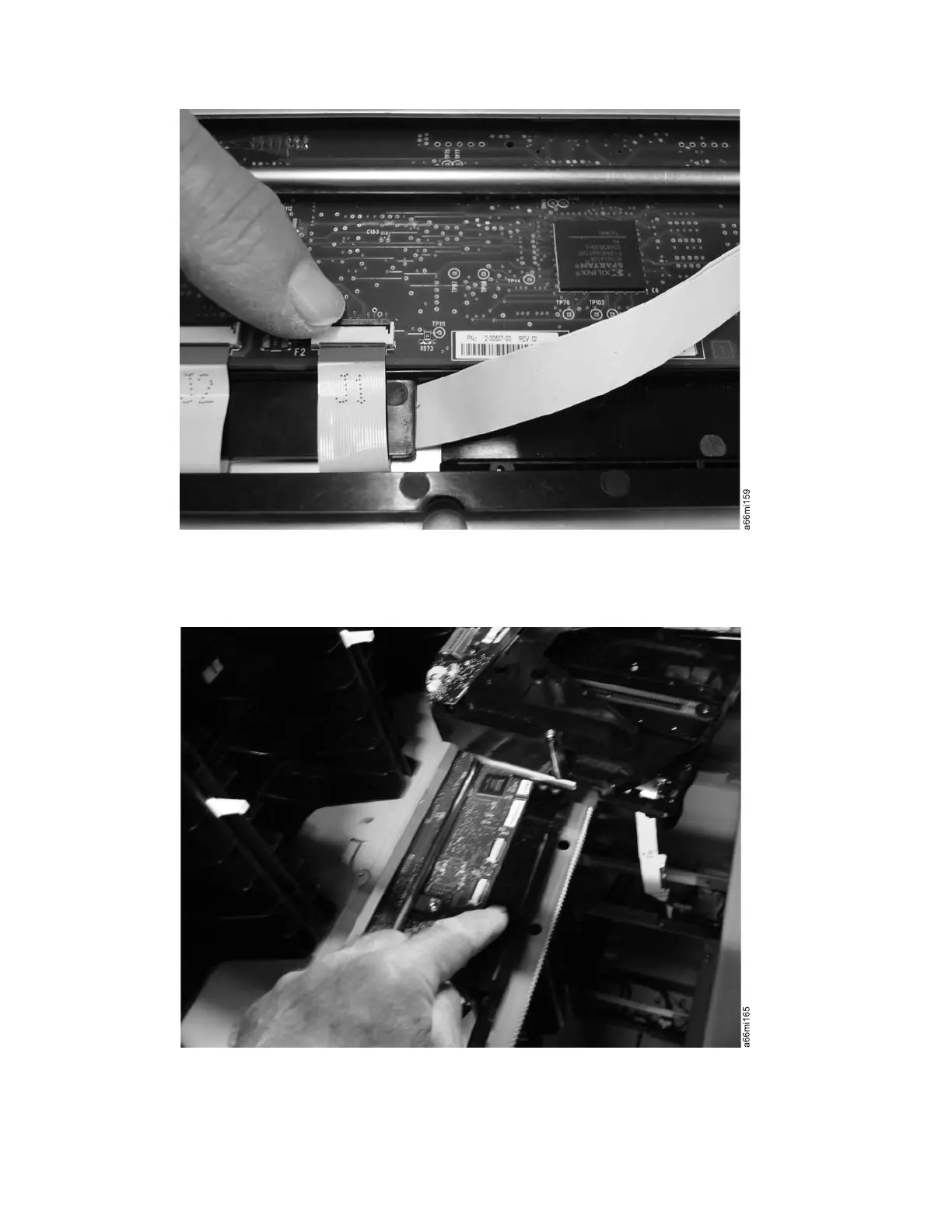

Figure 8-102. Locking the cable into place
Figure 8-103. Closing the cable protector
8-92 TS3310 Tape Library Maintenance Information
