Removing the I/O Station Safety Flap from an Expansion
Module (9U)
1. Perform “Removing an I/O Station” on page 8-35.
2. Unhook the front spring wire (1 in Figure 8-41) from the tab on the I/O flap.
3. Unhook the rear spring wire (2 in Figure 8-41) from the notch in the frame.
4. Disconnect the plastic link (1 in Figure 8-42 on page 8-41) from the bottom
flap (3 in Figure 8-42 on page 8-41). Use a small screwdriver (2 in
Figure 8-42 on page 8-41) to pry the link out of the hole in the bottom flap.
a66mi117
2
1

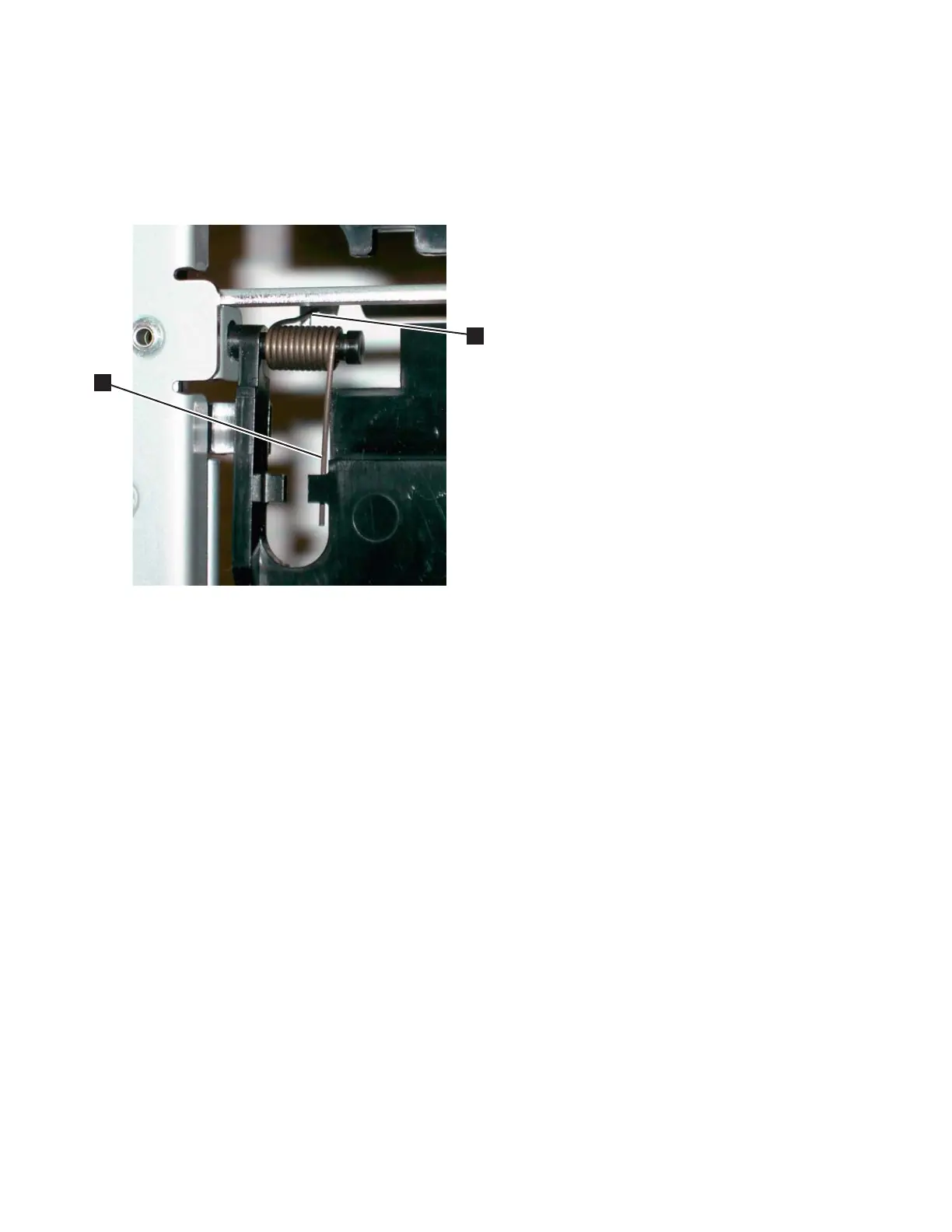

Figure 8-41. I/O Safety Flap Front Spring Wire
