c. Connect the cables. Note that there is a black line on the blue portion of
each flex cable. (See Figure 8-101). When fully inserted, the black line on the
flex cable will be flush with the edge of the connector. Press down on the
back latch on the connector to lock the cable into place. (See Figure 8-102 on
page 8-92.)

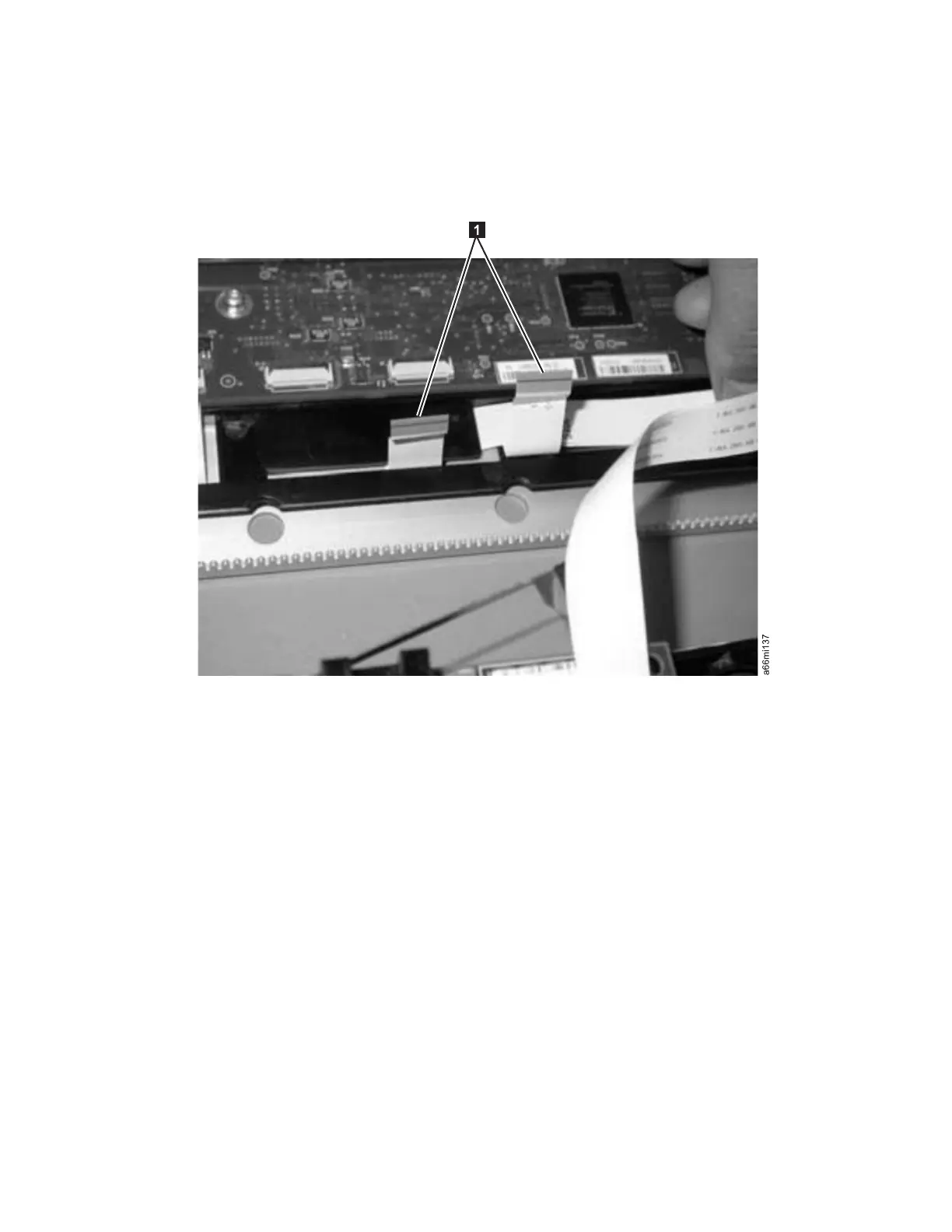

Figure 8-101. Black guideline on the cable
Chapter 8. Add, Check, Adjust, Remove, and Replace Procedures 8-91
