IBM TS3310

v In the M2 Robot Assembly, access the thumbwheel on the front of the Picker
as shown in Figure 7-19.
a66mi081
1

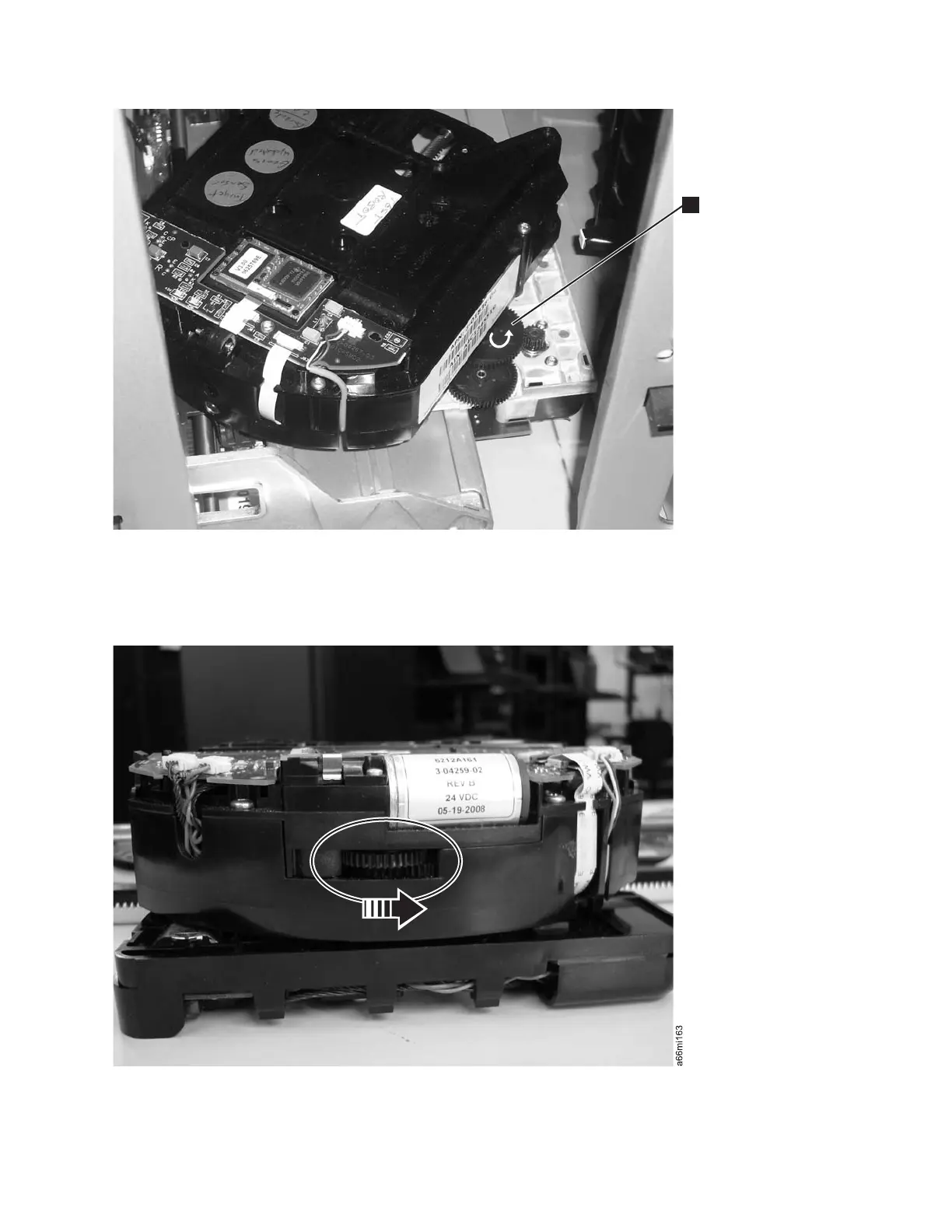

Figure 7-18. Picker rotated for drive gears access
Figure 7-19. Access the M2 Picker Thumbwheel
Chapter 7. Service Procedures 7-41
