5. Push the upper right hand corner of the bottom flap to the left to remove the
pivot pin (1 in Figure 8-43) from the pivot hole (2 in Figure 8-43).
6. Move the bottom flap to the right to remove the pivot pin (1 in Figure 8-44
on page 8-42) from the pivot hole (1 in Figure 8-44 on page 8-42). The bottom
flap can now be removed from the library.
a66mi116
1
2 3

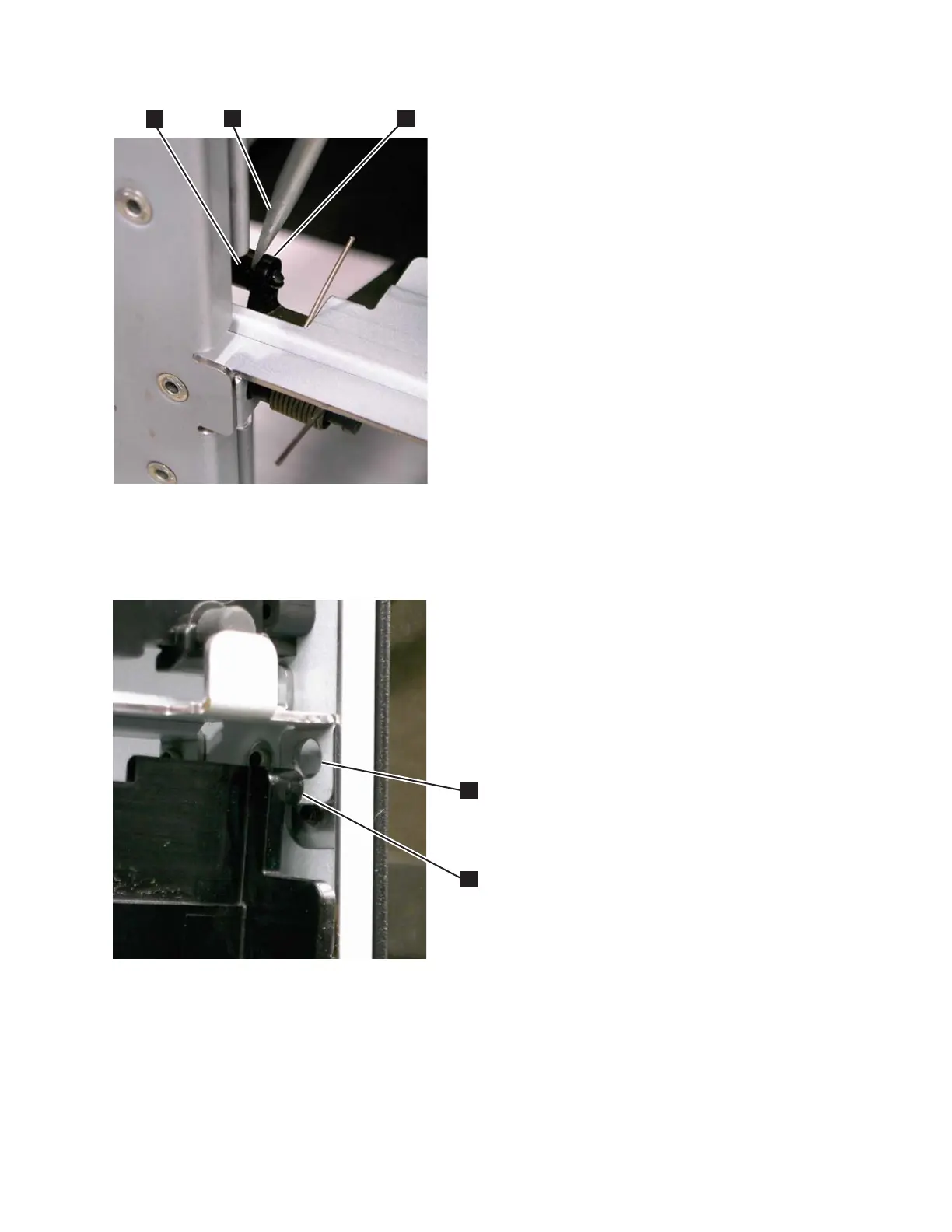

Figure 8-42. I/O Safety Flap Link
a66mi115
1
2
Figure 8-43. I/O Safety Flap Pivot Pin
Chapter 8. Add, Check, Adjust, Remove, and Replace Procedures 8-41

IBM TS3310 Specifications

General

Form Factor	Rack-mountable
Tape Technology	LTO Ultrium
Product Type	Tape Library
Interface	Fibre Channel
Expansion	Expandable with additional modules
Supported Tape Technology	LTO Ultrium 5, LTO Ultrium 6
Weight	120 lb (54.4 kg) (fully configured)
Power Supply	Dual redundant power supplies
Operating Temperature	41°F to 95°F (5°C to 35°C)
Non-operating Temperature	-40°F to 140°F (-40°C to 60°C)
Humidity	20% to 80% non-condensing
