5. Tighten the thumb screw to connect the spooler cable to the M2 Robot
Assembly (1 in Figure 8-72).
6. Lower the M2 Robot Assembly by tilting its gears at a 45° angle onto the top
of the front and rear gear racks (see Figure 8-73 on page 8-71 and Figure 8-74
on page 8-71).
Important: BE VERY CAREFUL TO START BOTH M2 ROBOT ASSEMBLY
GEARS TOGETHER TO ENSURE THE M2 ROBOT ASSEMBLY
IS LEVEL.
a66mi124
1

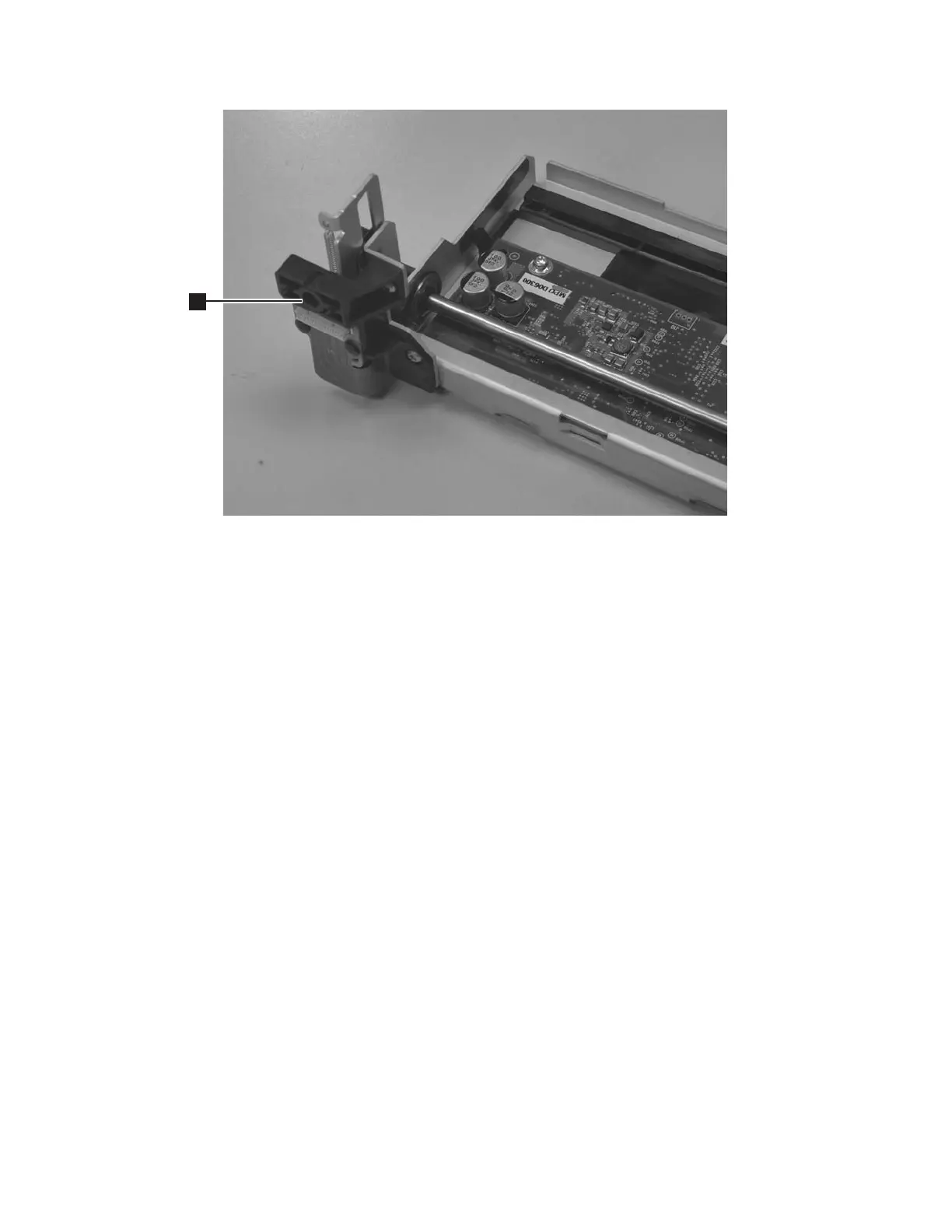

Figure 8-72. Thumbscrew securing Cable Spool
8-70 TS3310 Tape Library Maintenance Information

IBM TS3310 Specifications

General

Form Factor	Rack-mountable
Tape Technology	LTO Ultrium
Product Type	Tape Library
Interface	Fibre Channel
Expansion	Expandable with additional modules
Supported Tape Technology	LTO Ultrium 5, LTO Ultrium 6
Weight	120 lb (54.4 kg) (fully configured)
Power Supply	Dual redundant power supplies
Operating Temperature	41°F to 95°F (5°C to 35°C)
Non-operating Temperature	-40°F to 140°F (-40°C to 60°C)
Humidity	20% to 80% non-condensing
