b. Locate the slot feature on the Picker Assembly and side it over the sheet
metal edge on the M2 Robot Assembly. (See Figure 8-104).
1) Align the slot on the picker to the sheet metal edge on the M2 Robot
Assembly, as shown in Figure 8-105 on page 8-94

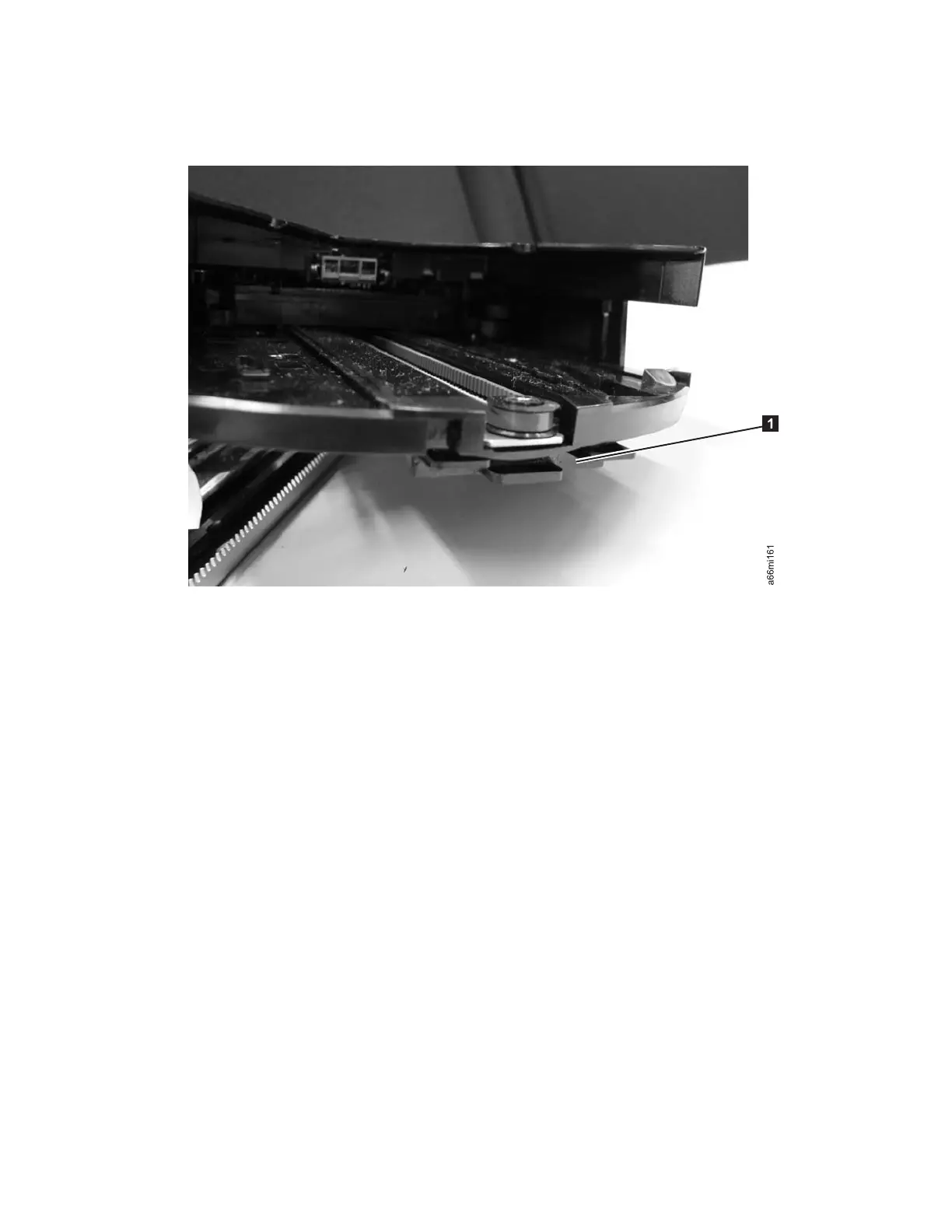

Figure 8-104. Slot feature on the Picker Assembly
Chapter 8. Add, Check, Adjust, Remove, and Replace Procedures 8-93
