7. Repeat steps 5 and 6 above to remove the top flap from the library.
Replacing the I/O Station Safety Flap in an Expansion Module
(9U)
Perform “Removing the I/O Station Safety Flap from an Expansion Module (9U)”
on page 8-40 in the reverse order. When installing the bottom flap, position the
spring (1 in Figure 8-45) as shown.
a66mi113
1
2

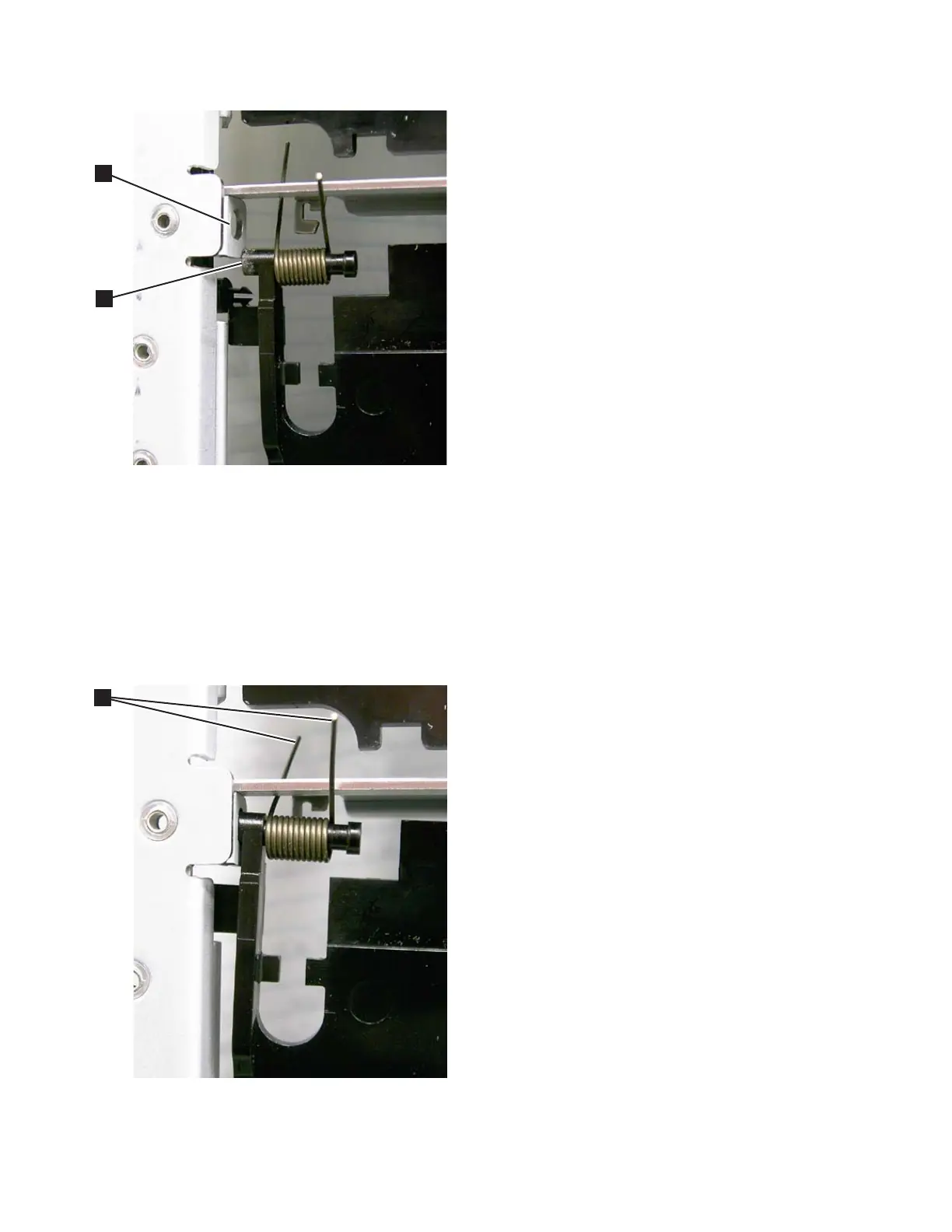

Figure 8-44. I/O Safety Flap Pivot Pin, Removed
a66mi112
1
Figure 8-45. I/O Station Safety Flap Bottom Spring position
8-42 TS3310 Tape Library Maintenance Information
