IBM TS3310 - Front and Back Gear Racks; Gear Racks in the up and down Positions

a. Disengage the Y-rails so the module can be unstacked safely.
a77qs004
2
1

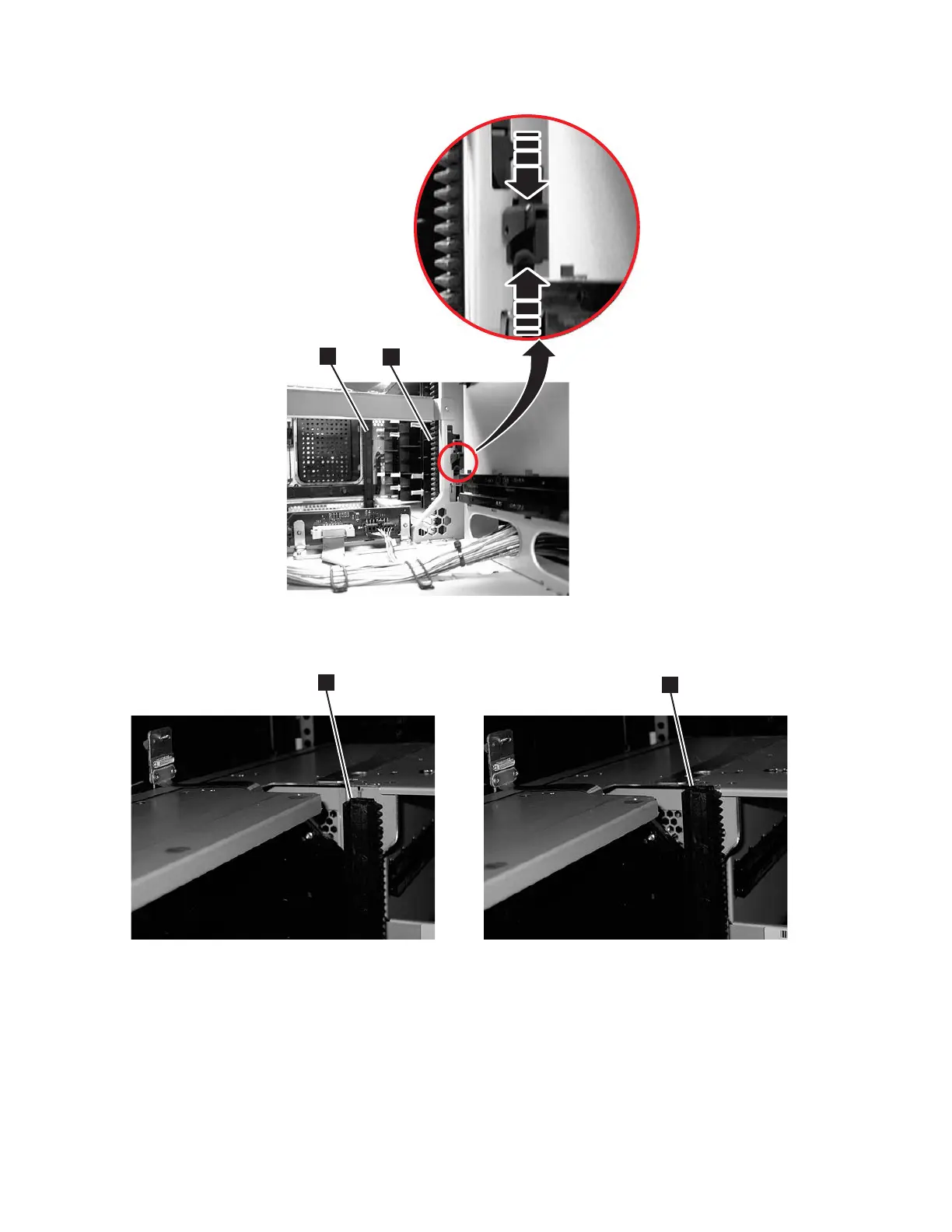

Figure 8-3. Front and back gear racks
a77qs005
3
4
Figure 8-4. Gear racks in the up and down positions
8-8 TS3310 Tape Library Maintenance Information
|
|
|
|
|
|
|
|
|
|
