1 front Y-rail. 3 Y-rail (this end up)
2 rear Y-rail. 4 squeeze here to release
v From the front of the library, open the I/O station and access door of the
9U expansion module. Squeeze the handle of the Y-rail release mechanism,
lift it out of its locked position, and slide it downward as far as it will go.
1
2
3
4
a77qs036

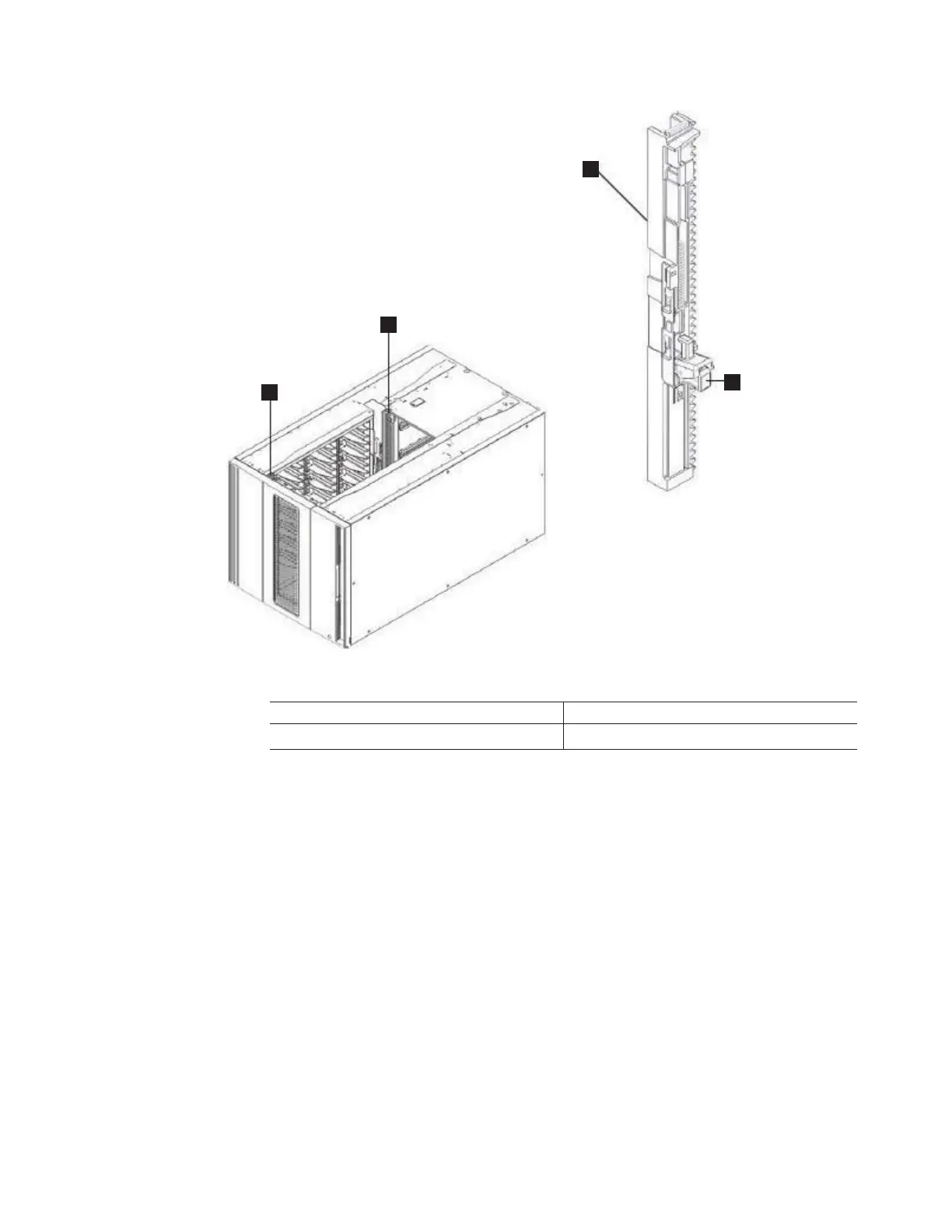

Figure 8-15. Placing gear rack in the Down position
Chapter 8. Add, Check, Adjust, Remove, and Replace Procedures 8-17
|
|
|
|
|
||
||
|
|
|
|
|
