2. Push the tool in to unlock the I/O station door. There is a large, flat
pushbutton type mechanism behind the hole in the cover that, when pushed
toward the rear of the library, will release the I/O station lock mechanism.
3. To manually relock the I/O Station door:
v From the Operator Panel, select Operations → Lock I/O Station
v From the Web User Interface, select Manage Cartridges → Lock/Unlock I/O
Station Doors
Removing an I/O Station
1. Open the I/O Station door, then the Access Door.
2. Reaching through the Access Door opening, push up on the roller (1 in
Figure 8-34) located above the I/O Station slide and pull the I/O Station
towards you until the slide is in front of the roller.
Note: The I/O Station in an expansion module has two slides and two silver
rollers. Push up on one of the rollers while you pull out on that part of
the I/O Station, then push up on the other roller to release the I/O
Station. If necessary, the silver rollers may be pushed up far enough to
latch in the cutout hole in the side frame. Ensure that they are unlatched
when the I/O station is reinstalled.
3. Supporting the I/O Station from underneath with your other hand, pull it out
of the library module.
4. Place the I/O Station in a safe location.
a66mi052
1

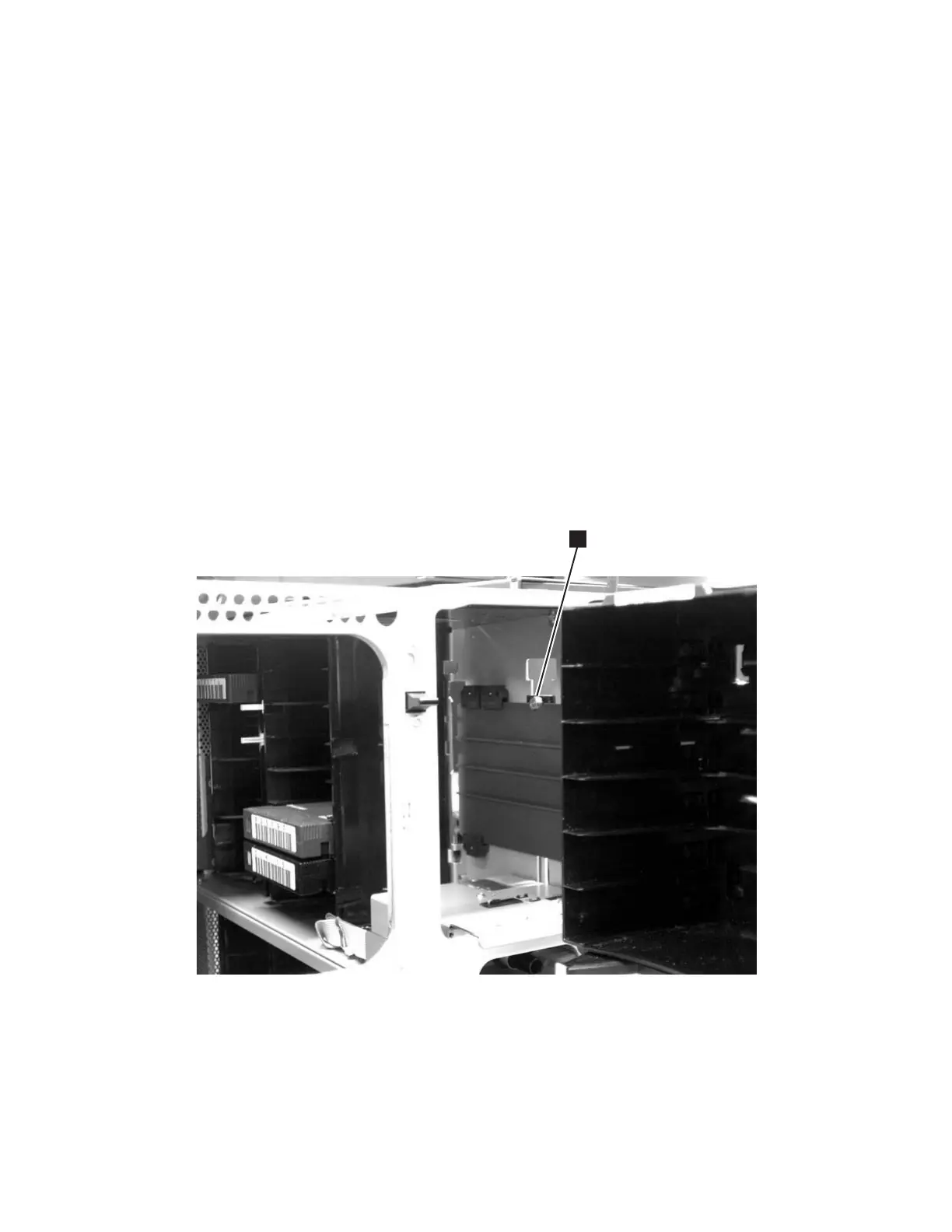

Figure 8-34. Silver roller locking the I/O Station slide in place
Chapter 8. Add, Check, Adjust, Remove, and Replace Procedures 8-35
