IBM TS3310 User Manual

Appendix D. Using Ultrium Drives
The 3576 Tape Library supports Ultrium SCSI, SAS, and Fibre Channel tape drives.
“Single-character Display (SCD)” on page D-2
“Status Light” on page D-2
“Unload Button” on page D-4
“Inserting a Tape Cartridge” on page D-4
“Removing a Tape Cartridge” on page D-5
“Using Ultrium Media” on page D-5
“Diagnostic and Maintenance Functions” on page D-26
“Drive Error Codes” on page D-41
“Resolving Tape Drive Problems” on page D-48
“Fixing SCSI Bus Problems” on page D-51
“Fixing Fibre Channel Errors” on page D-54
“Fixing SAS Interface Problems” on page D-57
1 Status Light 3 Single-character Display (SCD)
2 Unload Button 4 SCD Dot
a82ru001
1
2
3
4

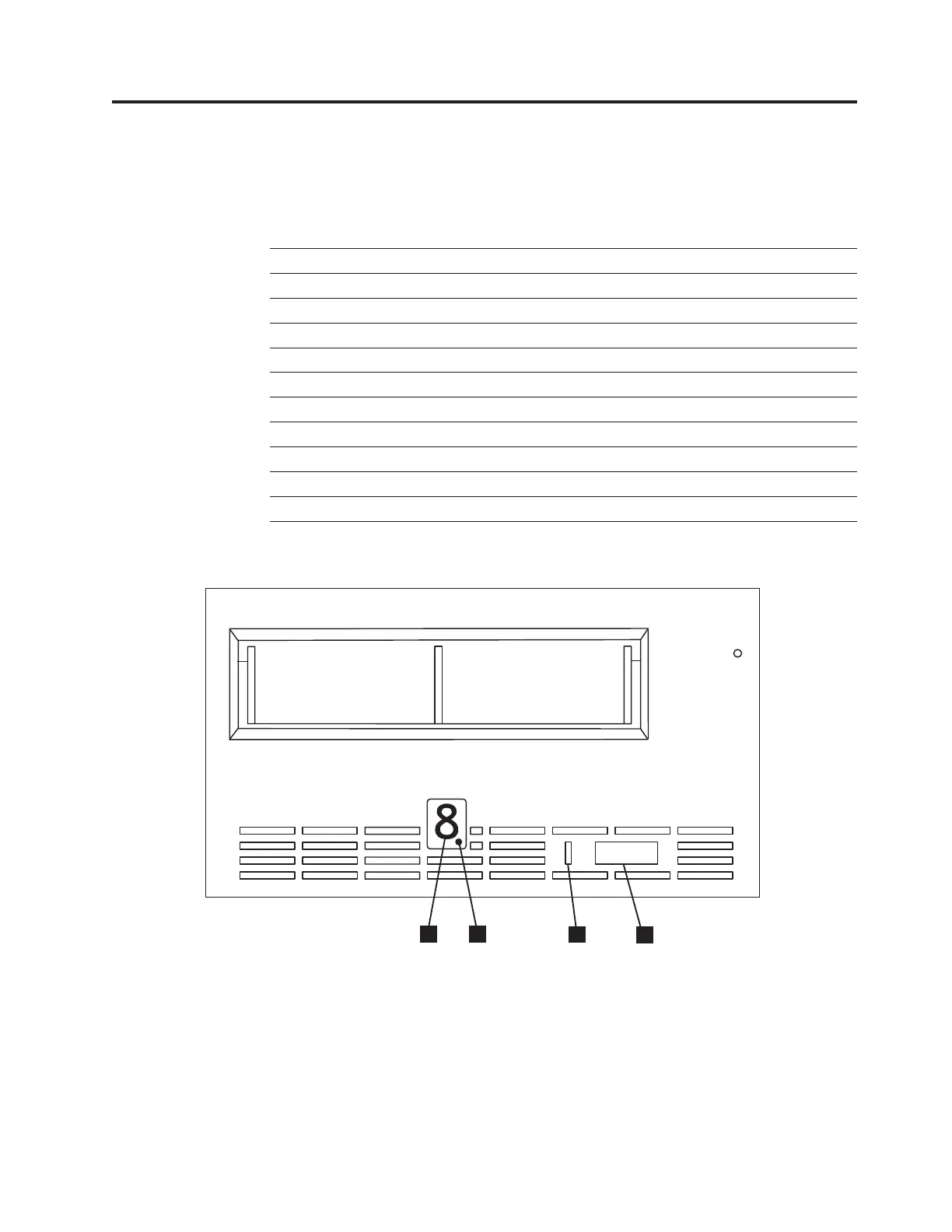

Figure D-1. Front panel of the drive
© Copyright IBM Corp. 2005, 2010 D-1

IBM TS3310 Specifications

General

Form Factor	Rack-mountable
Tape Technology	LTO Ultrium
Product Type	Tape Library
Interface	Fibre Channel
Expansion	Expandable with additional modules
Supported Tape Technology	LTO Ultrium 5, LTO Ultrium 6
Weight	120 lb (54.4 kg) (fully configured)
Power Supply	Dual redundant power supplies
Operating Temperature	41°F to 95°F (5°C to 35°C)
Non-operating Temperature	-40°F to 140°F (-40°C to 60°C)
Humidity	20% to 80% non-condensing
