6. From the front of the control module, hook the Cable Spool flat cable handle
(3 in Figure 8-115 on page 8-104) around the black plastic guide peg (2 in
Figure 8-115 on page 8-104). This will rotate the small terminal board (1 in
Figure 8-115 on page 8-104) so that it will not contact the frame when the
assembly is removed from the enclosure.
1
a66mi009

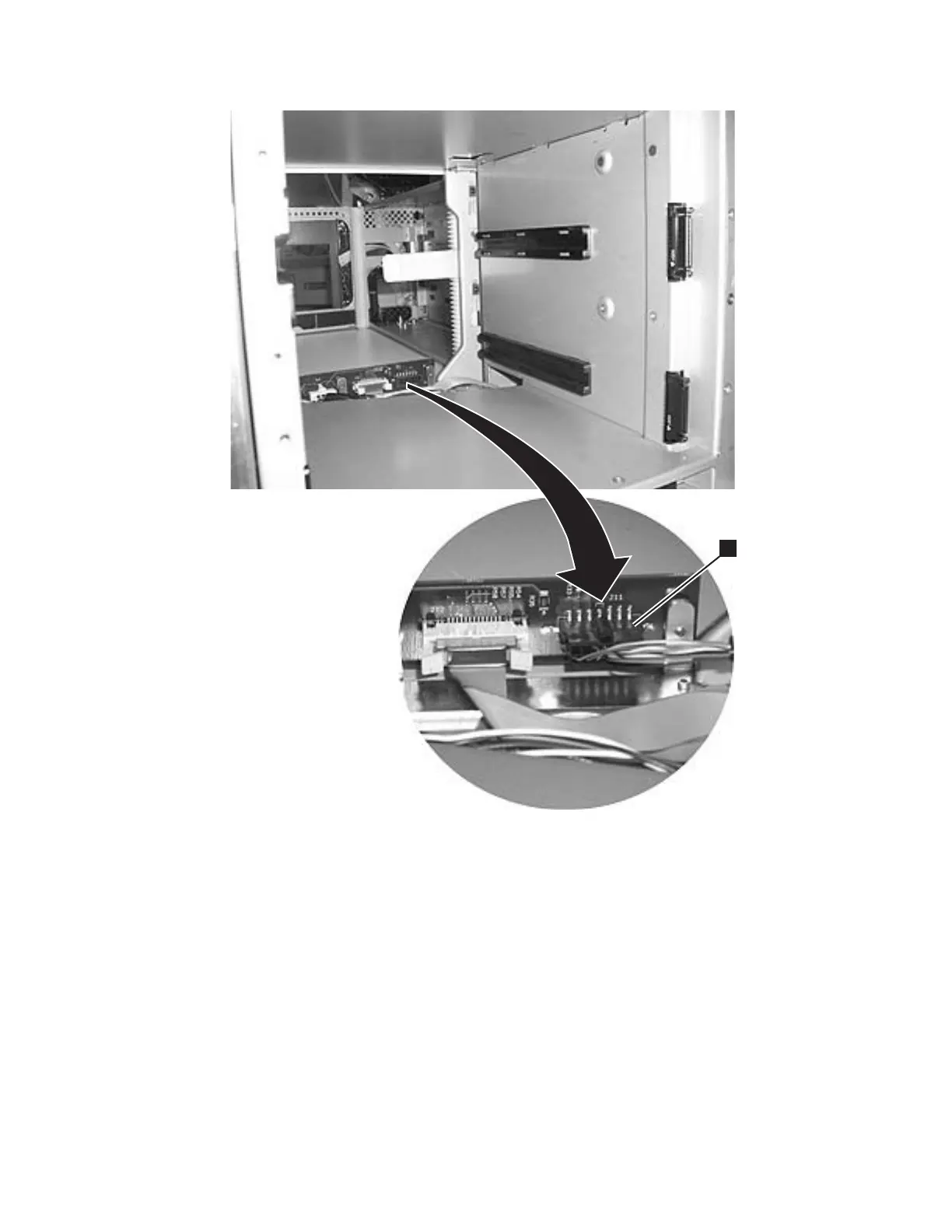

Figure 8-114. Unplugging the Cable Spool Assembly (library shown in upright position)
Chapter 8. Add, Check, Adjust, Remove, and Replace Procedures 8-103
