Replacing the Cable Spool Assembly
1. Insert the Cable Spool Assembly into the control module. Carefully route the
cable disconnected from the distribution board through the holes in the
enclosure (1 in Figure 8-116) and to the left of the screw stand-offto avoid
damage to the cable.
2. Carefully insert the plastic tabs (1 in Figure 8-117 on page 8-106) on the Cable
Spool Assembly into the slots (2 in Figure 8-117 on page 8-106) in the
enclosure sidewall.
a66mi075
1

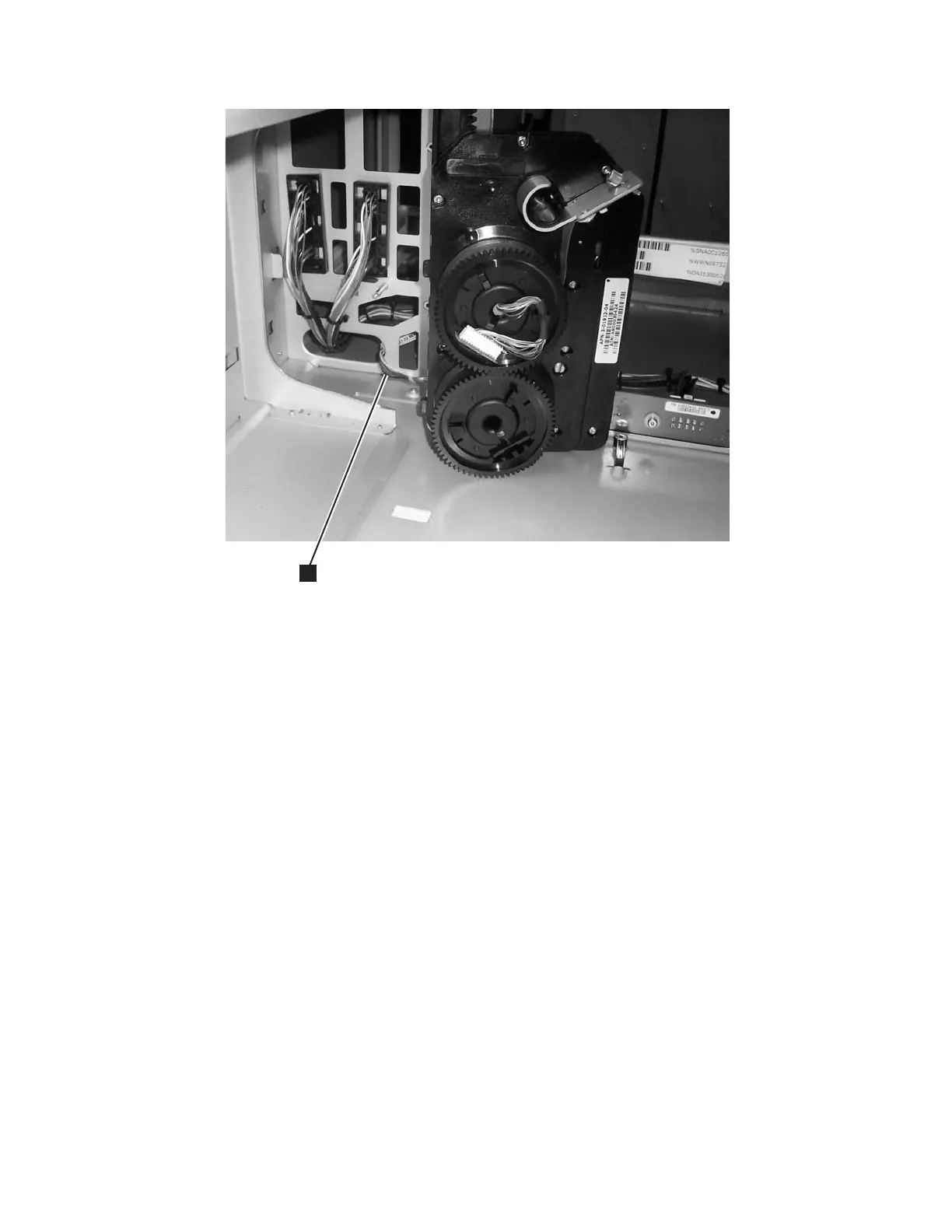

Figure 8-116. Cable Spool cable routing through enclosure wall
Chapter 8. Add, Check, Adjust, Remove, and Replace Procedures 8-105
