b. Connect the cables. Note the guideline on the blue backer of the flex cable
(See Figure 8-82 on page 8-78. When fully inserted, the guideline on the flex
cable will be flush with the edge of the connector. Press down on the back
latch on the connector to lock the cable into place. See Figure 8-83 on page
8-78.

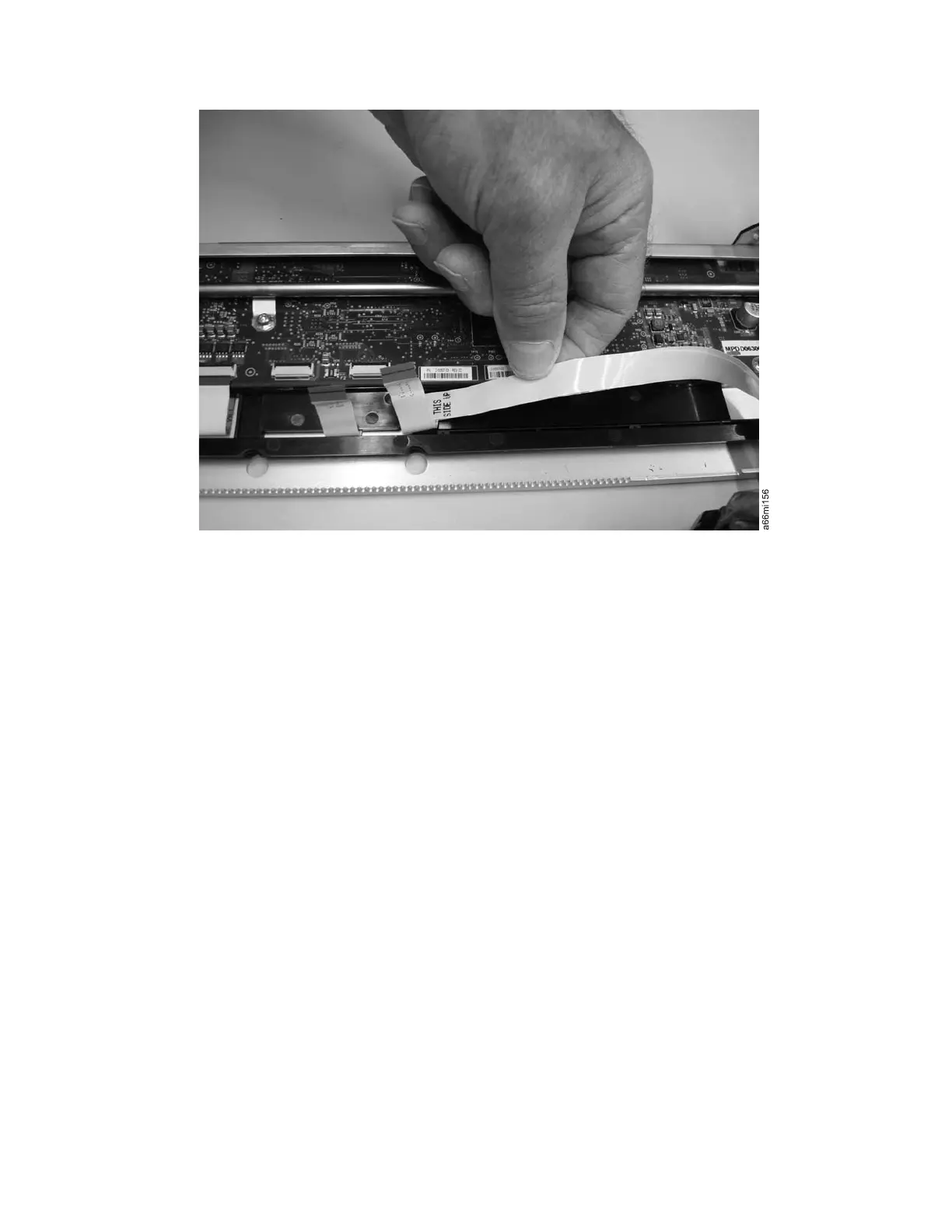

Figure 8-81. Slide the cables under the plastic guide
Chapter 8. Add, Check, Adjust, Remove, and Replace Procedures 8-77
