7. Loosen the rear thumb screws (1 in Figure 8-7) securing the control module
to the lower expansion module.
8. If your library is installed in a rack, remove the rack ears (see “Removing the
Rack Ears” on page 8-20) from the front of the control module.
a66mi0
18
1

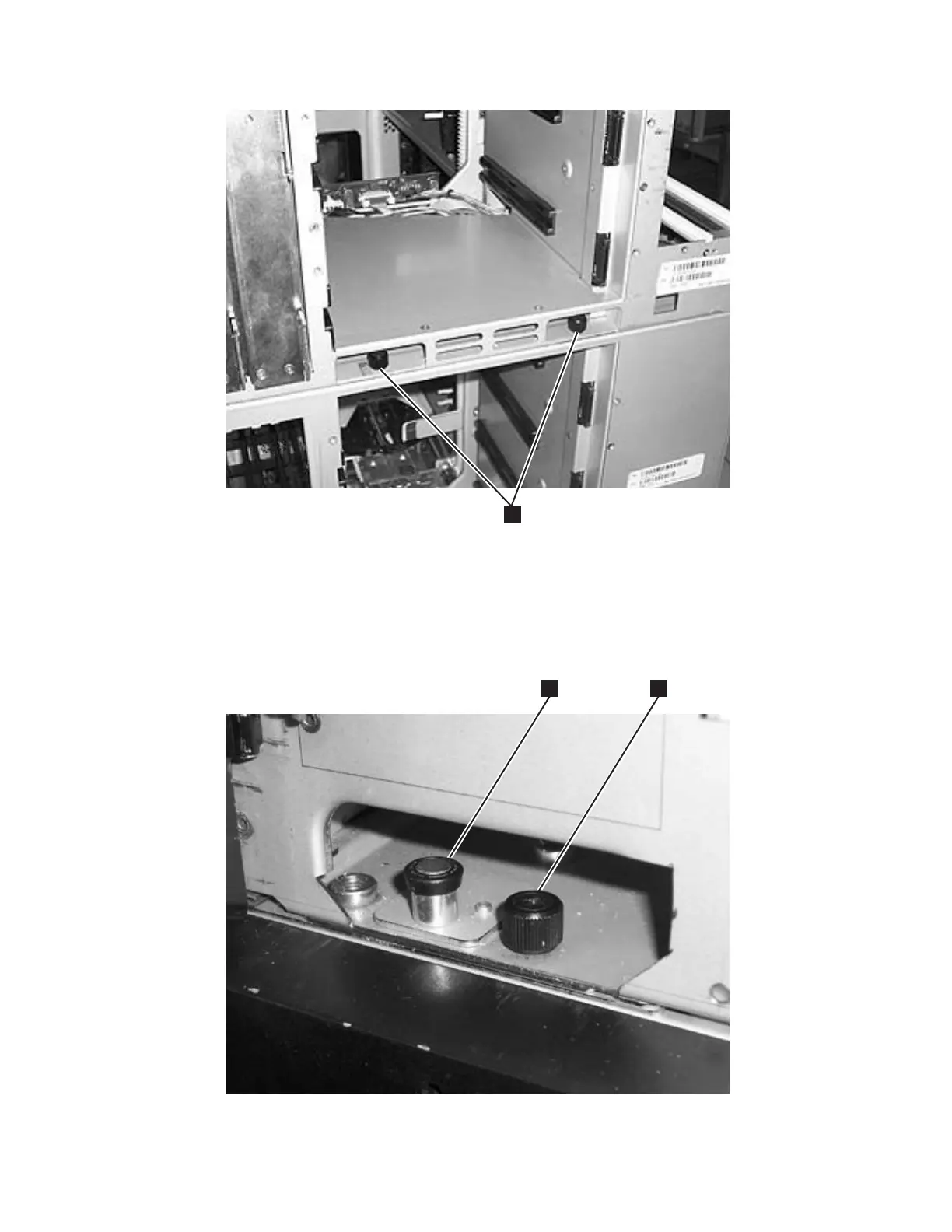

Figure 8-7. Control module rear thumb screws
1
2
a66ug017
Figure 8-8. Alignment pin and front thumb screw
Chapter 8. Add, Check, Adjust, Remove, and Replace Procedures 8-11
