1 Y-rail in locked, functional position.
c. From the rear of the library, find the rear Y-rail release mechanism located
in the interior of the right side of the module. Squeeze the handle of the
Y-rail release mechanism, lift it, and release it so that it locks in place.
4. Unplug the customer-supplied Ethernet cable from the Library Control Blade
(2 in Figure 8-49 on page 8-47).
5. Unplug the module-to-module communication cable from the control module
(4 in Figure 8-49 on page 8-47).
6. Remove the following components from the control module to reduce the
weight of the module.
a. Power supplies (see “Power Supply (Primary and Redundant)” on page
8-52).
b. Drive sleds (see “Drive Sled” on page 8-43).
Note: If not already done, have the customer remove all tape cartridges
from the module being removed.
a77qs037
1

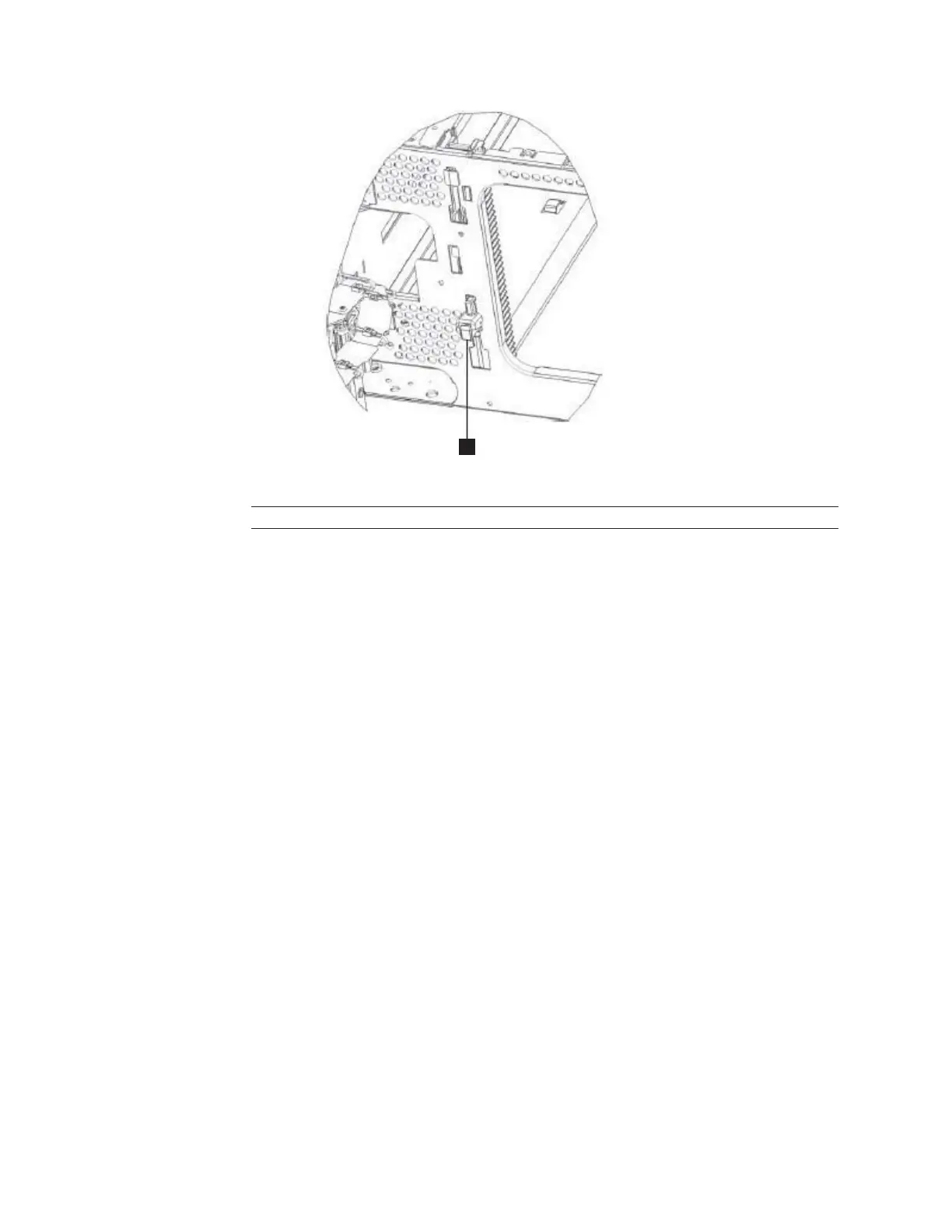

Figure 8-6. Releasing the Y-rail
8-10 TS3310 Tape Library Maintenance Information
|
|
|
|
|
|
|
|
|
|

IBM TS3310 Specifications

General

Form Factor	Rack-mountable
Tape Technology	LTO Ultrium
Product Type	Tape Library
Interface	Fibre Channel
Expansion	Expandable with additional modules
Supported Tape Technology	LTO Ultrium 5, LTO Ultrium 6
Weight	120 lb (54.4 kg) (fully configured)
Power Supply	Dual redundant power supplies
Operating Temperature	41°F to 95°F (5°C to 35°C)
Non-operating Temperature	-40°F to 140°F (-40°C to 60°C)
Humidity	20% to 80% non-condensing
