IBM TS3310 User Manual

1 Module
communication
terminator
5 SCSI terminators 8 SCSI drive cables
2 Module-to-
module
communication
cable
6 Power cord
(Control Module)
9 Power cord (Expansion
Module)
3 Ethernet cable
(customer
supplied)
7 Power cord
(Expansion
Module)
10 Fibre drive-to-network cable
4 Module
communication
terminator
a66ug056
10
1
2
3
4
5
6
7
8
9

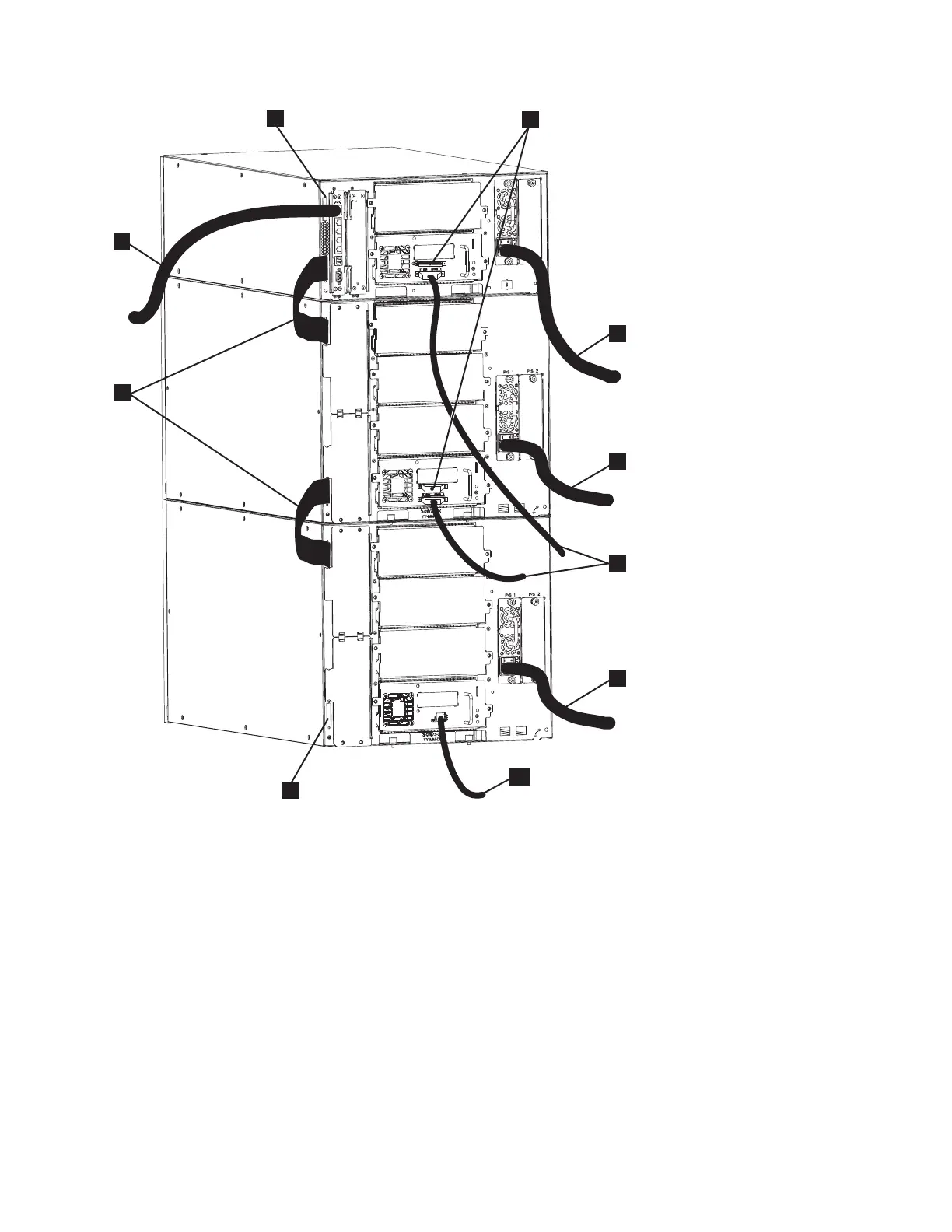

Figure 7-9. Cabling of a Multi-Module Library with SCSI and Fibre Drives
Chapter 7. Service Procedures 7-31

IBM TS3310 Specifications

General

Form Factor	Rack-mountable
Tape Technology	LTO Ultrium
Product Type	Tape Library
Interface	Fibre Channel
Expansion	Expandable with additional modules
Supported Tape Technology	LTO Ultrium 5, LTO Ultrium 6
Weight	120 lb (54.4 kg) (fully configured)
Power Supply	Dual redundant power supplies
Operating Temperature	41°F to 95°F (5°C to 35°C)
Non-operating Temperature	-40°F to 140°F (-40°C to 60°C)
Humidity	20% to 80% non-condensing
