7. After lowering the M2 Robot Assembly a few teeth, verify that the M2 Robot
Assembly is level with the library chassis. If it is not level, remove the M2
Robot Assembly and reinsert.
8. Replace the I/O Station (see “Reinstalling an I/O Station” on page 8-36).
9. Close the Access Door then the I/O Station door.
10. Replace the top cover of the control module, if necessary.
11. If necessary, perform one of the following procedures:
a66mi126

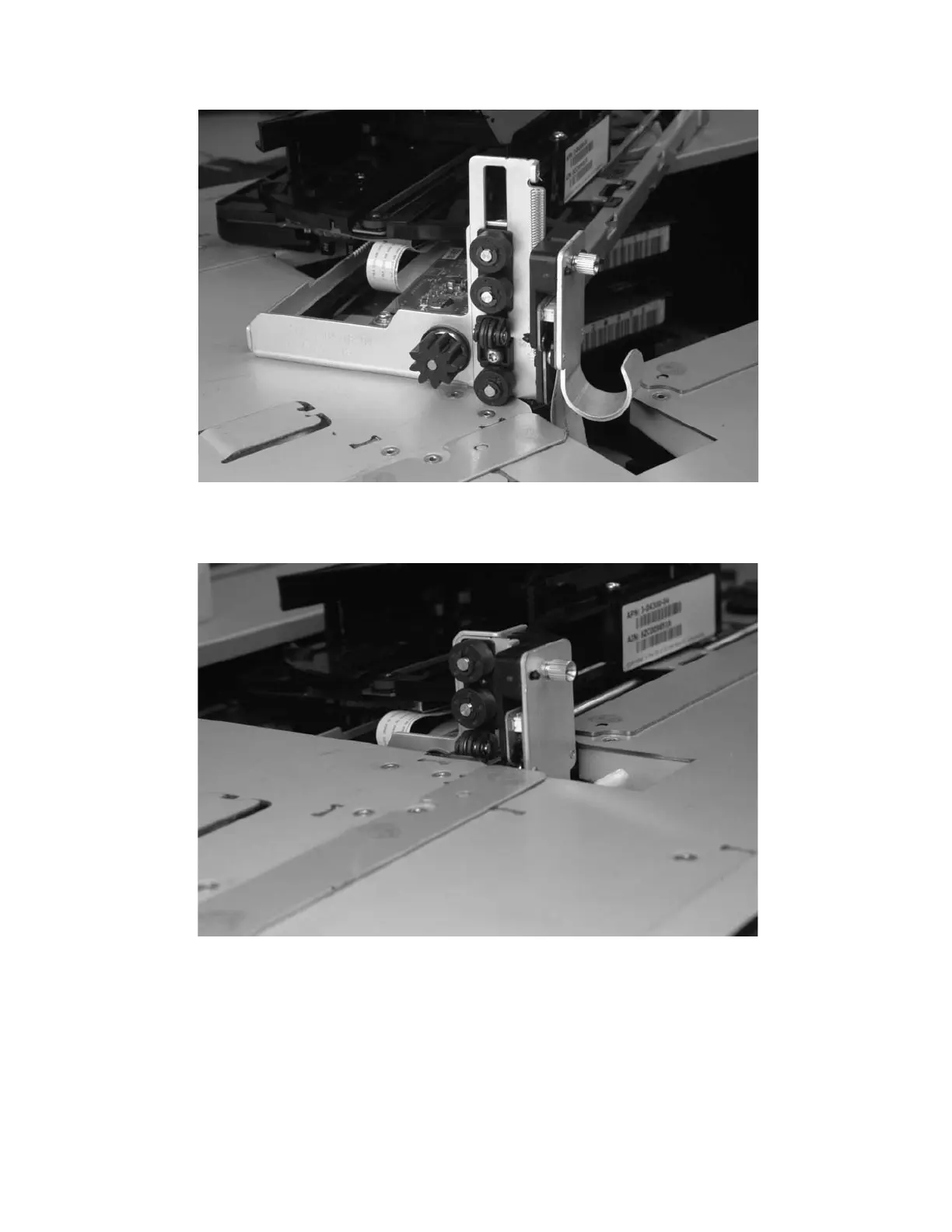

Figure 8-73. Guide rollers on M2 Robot Assembly
a66mi125
Figure 8-74. M2 Robot Assembly rollers inserted in gear rack track
Chapter 8. Add, Check, Adjust, Remove, and Replace Procedures 8-71
