2. Perform the following CRU procedures using the control module:
a. “Removing the Library Control Blade/ Compact Flash Assembly” on page
8-46
b. “Removing a Drive Sled” on page 8-43
c. “Power Supply (Primary and Redundant)” on page 8-52
3. Perform one of the following procedures:
v “Removing a 5U Library (Control Module) from a Rack” on page 8-4
v “Removing a Control Module from a Standalone or Rack-mounted Library
(14U or larger)” on page 8-5
4. Remove the top, side, and bottom covers, as necessary, from the control
module.
5. Perform the following FRU procedures using the control module:
a. “Removing an I/O Station” on page 8-35
b. “Removing the I/O Station Lock Assembly” on page 8-36
c. “M2 Robot Assembly” on page 8-67
d. All library magazines. “Removing/Replacing a Storage Column” on page
8-96
e. “Removing a Front Gear Rack” on page 8-106
6. Remove the cable assembly from the Operator Control Panel (OCP) to the
Backplane Connector Board (BCB).
a. Remove the cable retainers (see 1 in Figure 8-123).
Note: The cable retainers may be black rubber 'O' rings as shown, or white
plastic beaded cable ties. If they are the white cable ties, it will be
necessary to cut them off and replace them with new cable retainers
included in the new FRU kit.
b. Remove the 2 screws from under the cable guide (see 2 in Figure 8-123)
near the I/O Station lock assembly.
c. Unplug cable connectors J9 (see 2 in Figure 8-124 on page 8-113), J16 (see
3 in Figure 8-124 on page 8-113), and J15 (see 4 in Figure 8-124 on page
8-113) from the BCB.
a66mi105
1 2

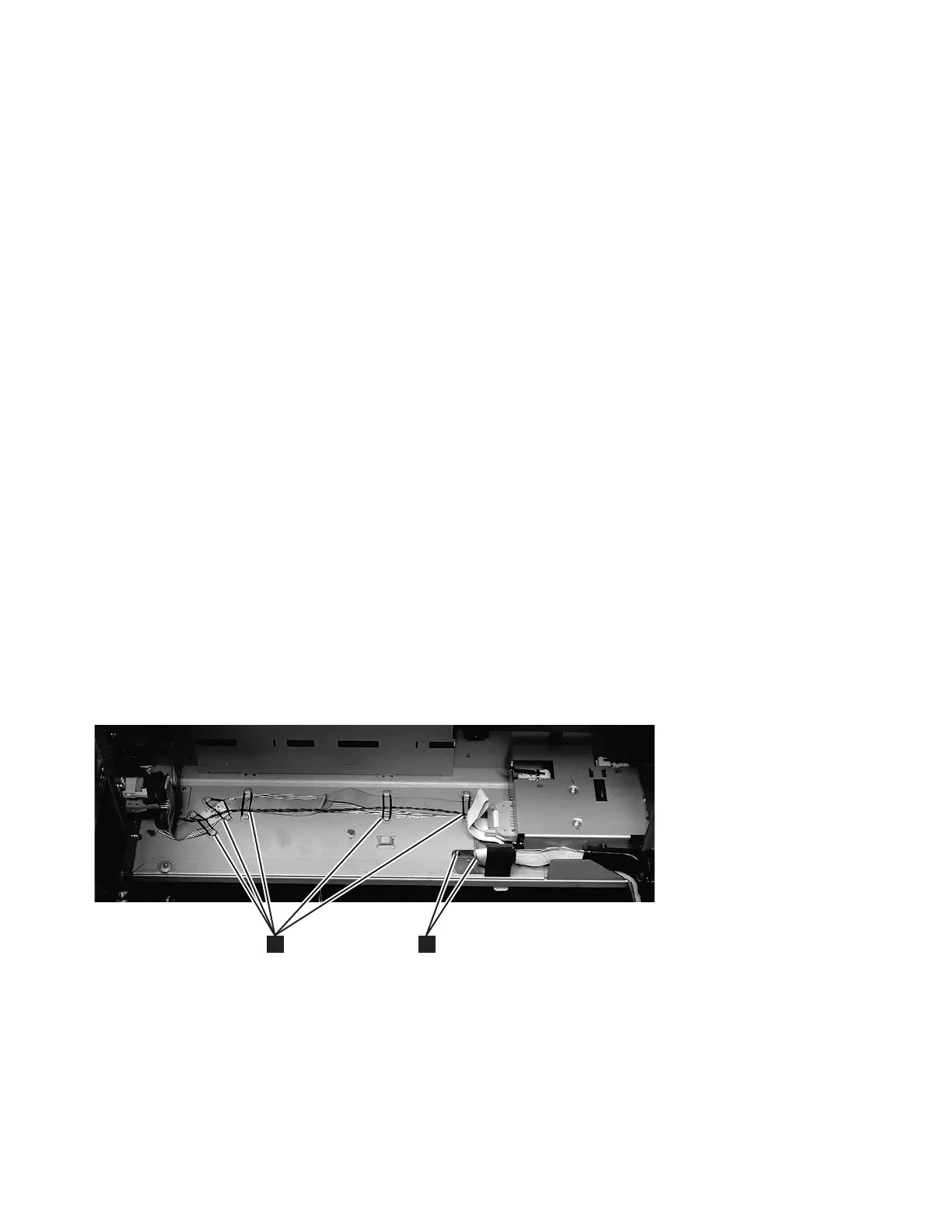

Figure 8-123. Cable assembly from the Operator Control Panel to the Backplane Connector Board
8-112 TS3310 Tape Library Maintenance Information
