6. Pinch the top of the connector (2 in Figure 8-60) and lift up to disconnect it.
7. Loosen the front and rear thumb screws (1 in Figure 8-61.
8. Carefully lift the Picker Assembly and remove it through the top of the library.
Replacing the Picker Assembly on the Y-axis Assembly in a
Stand-alone Library
1. Carefully insert the Picker Assembly and replace it through the top of the
library.
2. Tighten the front and rear thumb screws (1 in Figure 8-61).
3. Facing the library, rotate the Picker until the front of the Picker Assembly is
oriented approximately 45 degrees right of center, as seen from the top of the
library, to access the flat cable connector (1 in Figure 8-60).
4. Pinch the top of the connector (2 in Figure 8-60).
5. Close the front door(s).
6. Replace the I/O Station (see “Reinstalling an I/O Station” on page 8-36.
7. Replace the top cover of the library.
8. Power ON the library.
9. Remove any media that is in the picker.
1
2
a66mi002

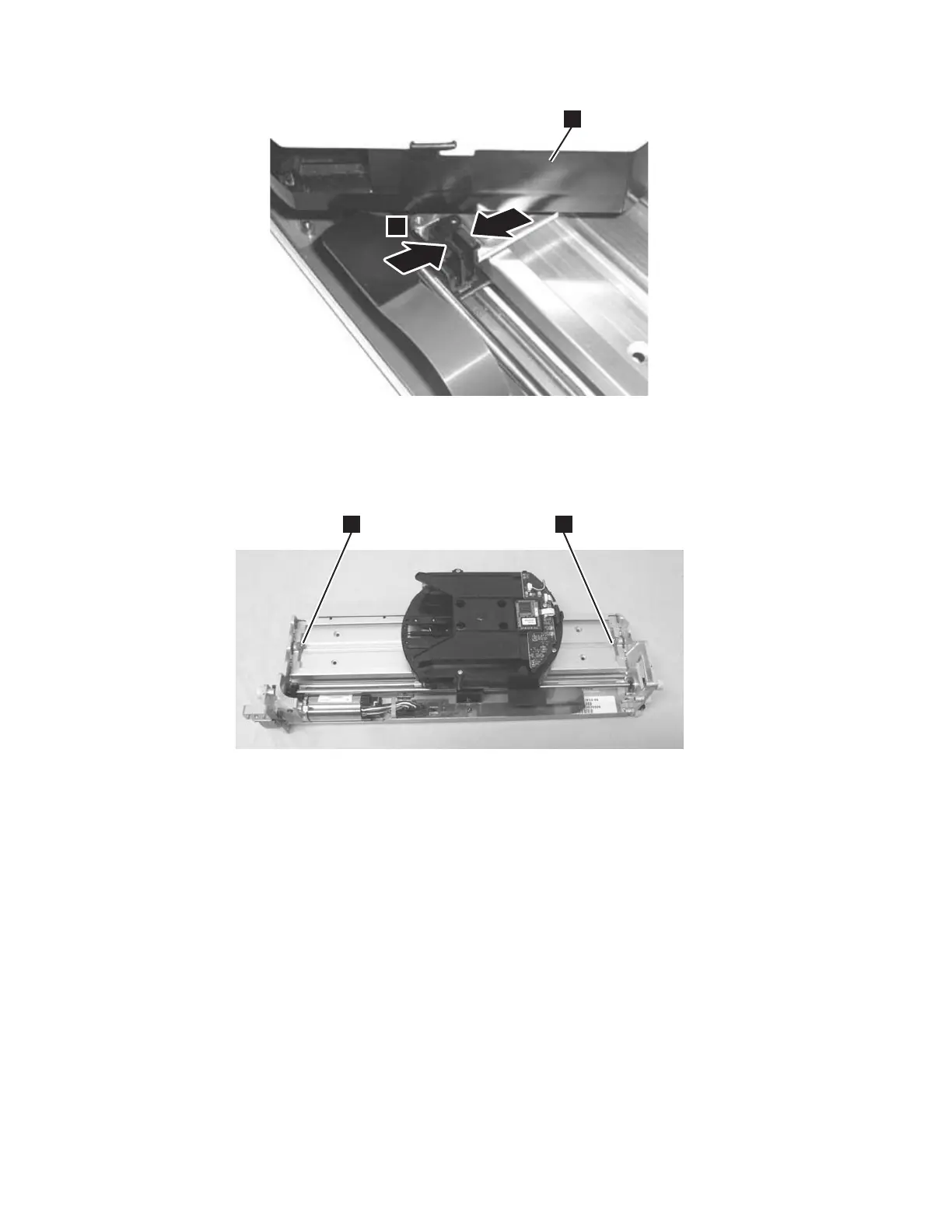

Figure 8-60. Flat cable connector
a66mi003
1
1
Figure 8-61. Thumb screws
8-60 TS3310 Tape Library Maintenance Information
|

IBM TS3310 Specifications

General

Form Factor	Rack-mountable
Tape Technology	LTO Ultrium
Product Type	Tape Library
Interface	Fibre Channel
Expansion	Expandable with additional modules
Supported Tape Technology	LTO Ultrium 5, LTO Ultrium 6
Weight	120 lb (54.4 kg) (fully configured)
Power Supply	Dual redundant power supplies
Operating Temperature	41°F to 95°F (5°C to 35°C)
Non-operating Temperature	-40°F to 140°F (-40°C to 60°C)
Humidity	20% to 80% non-condensing
