3) Slide the Picker over the sheet metal edge on the M2 Robot Assembly
(see Figure 8-86).
5. Lower and latch the Picker Assembly to the M2 Robot Assembly.

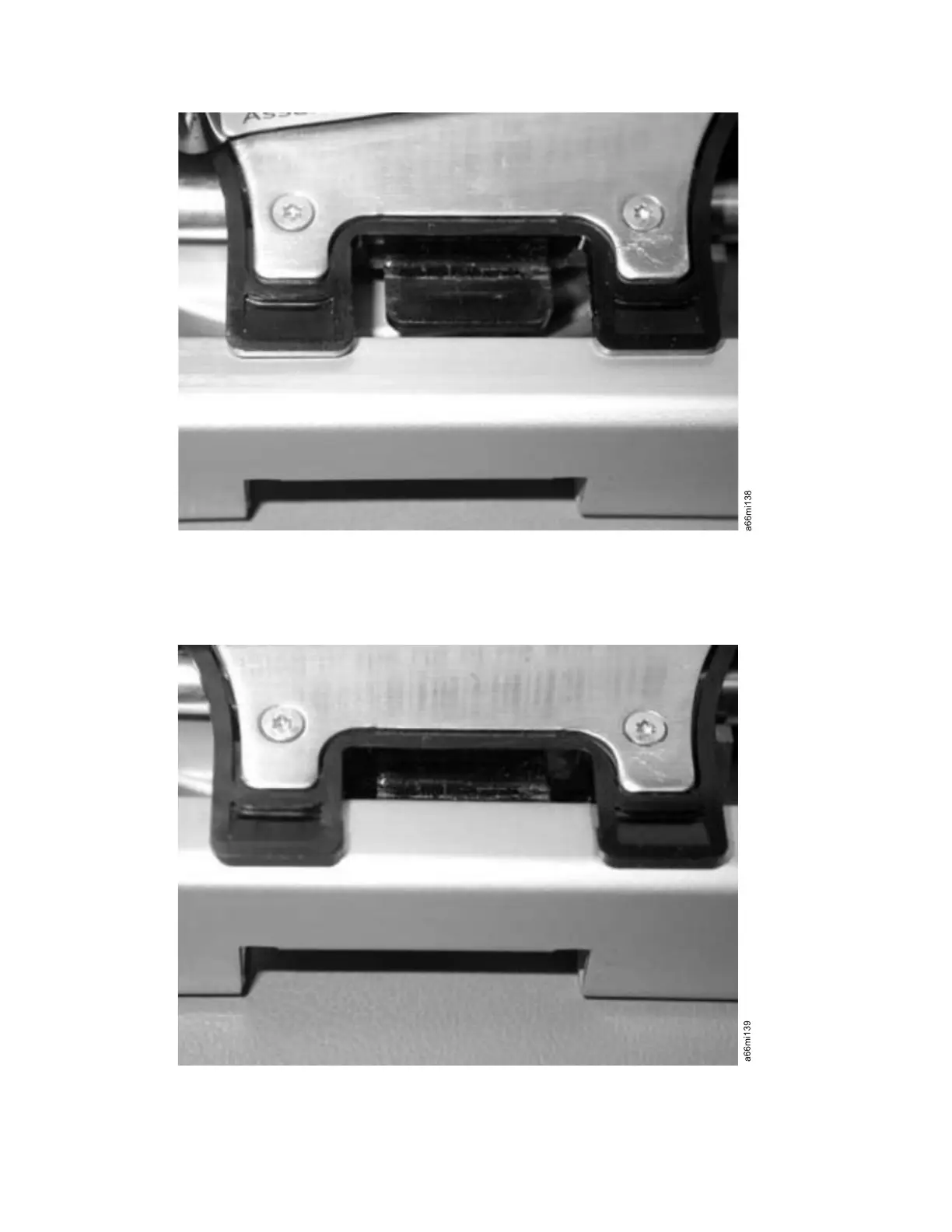

Figure 8-85. Align slot to sheet metal edge
Figure 8-86. Slide over sheet metal edge
