CAUTION:

This lever/clamp is very fragile. Lift it with a fingernail or similar small

object

c. Repeat the above steps for the second cable/connector.

d. Slide the flex cables to the rear as in Figure 8-80 on page 8-76.

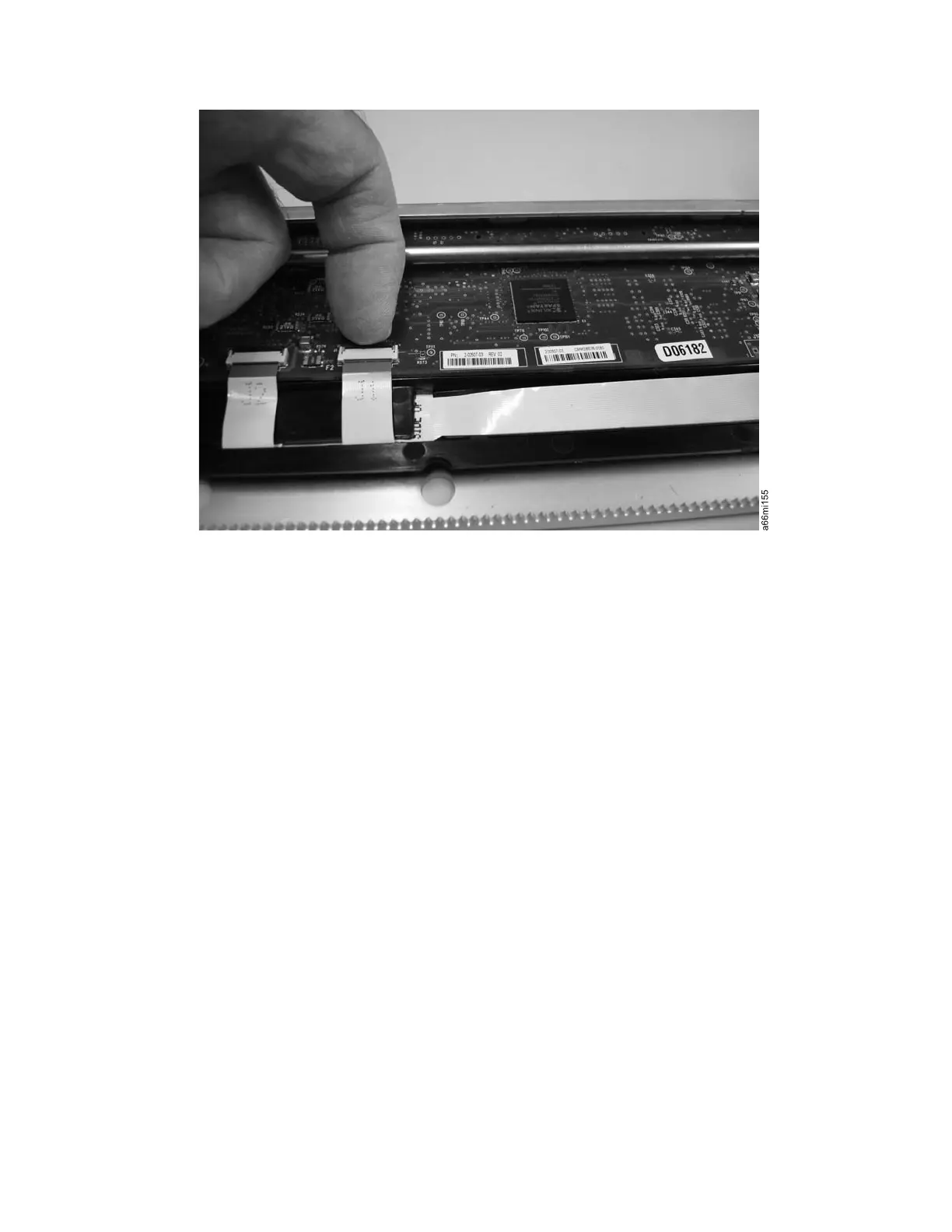

Figure 8-79. Lift the lever clamp on the back of the connectors

Chapter 8. Add, Check, Adjust, Remove, and Replace Procedures 8-75

Questions and Answers:

Need help?

Do you have a question about the IBM TS3310 and is the answer not in the manual?

IBM TS3310 Specifications

General

Form Factor	Rack-mountable
Tape Technology	LTO Ultrium
Product Type	Tape Library
Interface	Fibre Channel
Expansion	Expandable with additional modules
Supported Tape Technology	LTO Ultrium 5, LTO Ultrium 6
Weight	120 lb (54.4 kg) (fully configured)
Power Supply	Dual redundant power supplies
Operating Temperature	41°F to 95°F (5°C to 35°C)
Non-operating Temperature	-40°F to 140°F (-40°C to 60°C)
Humidity	20% to 80% non-condensing
