10. Tighten the rear thumb screws (1 in Figure 8-11) that secure the control
module to the lower expansion module.
11. If your library is installed in a rack, reinstall the rack ears on the front of the
control module to secure it to the rack (see “Replacing the Rack Ears” on page
8-21).
a66mi0
18
1

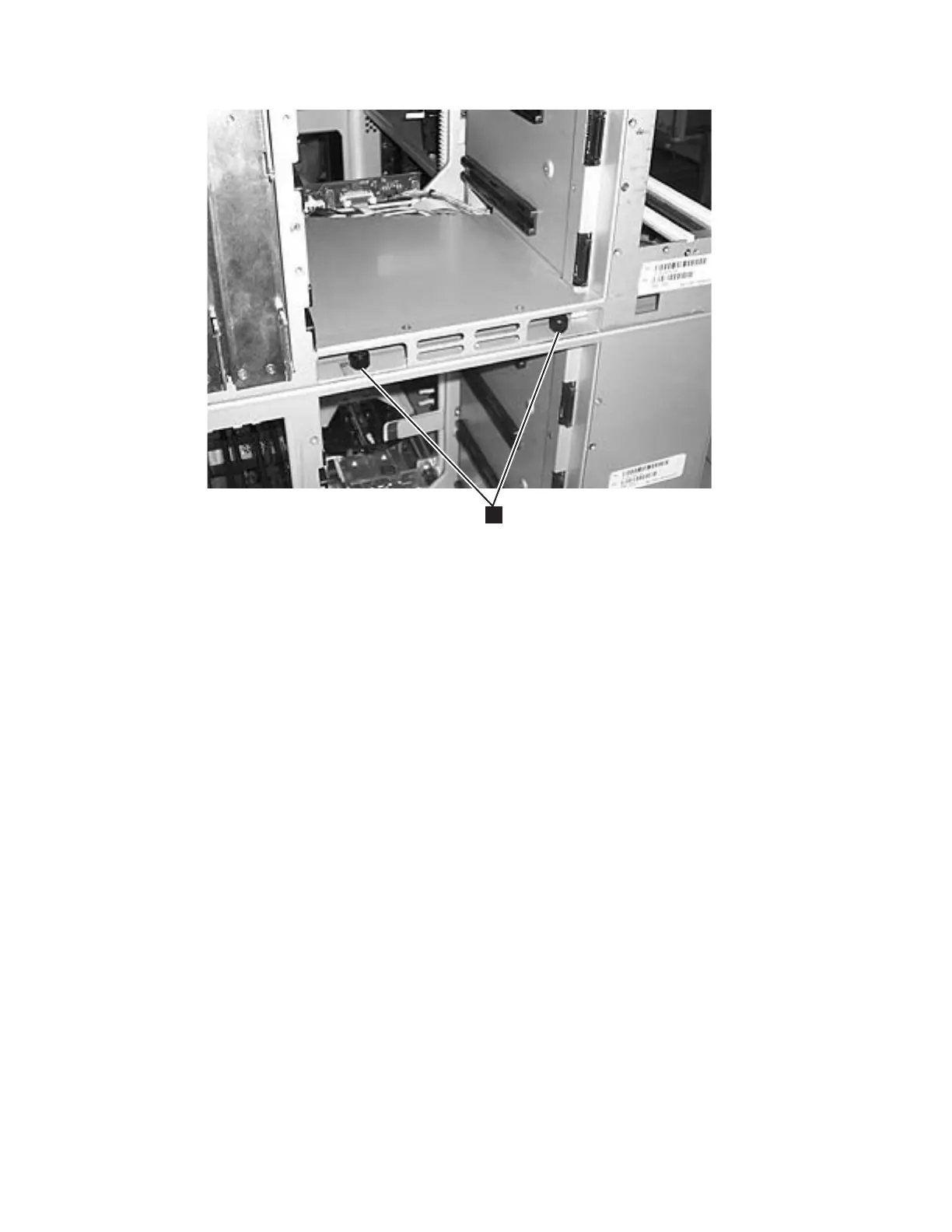

Figure 8-11. Control module rear thumb screws
8-14 TS3310 Tape Library Maintenance Information
