5. Disconnect the flex cables from the M2 Robot Controller Board.
a. Lift the cable protector (Figure 8-78).
b. Lift up the small lever/clamp on the back of the connector to release the
flex cable. (Figure 8-79 on page 8-75)

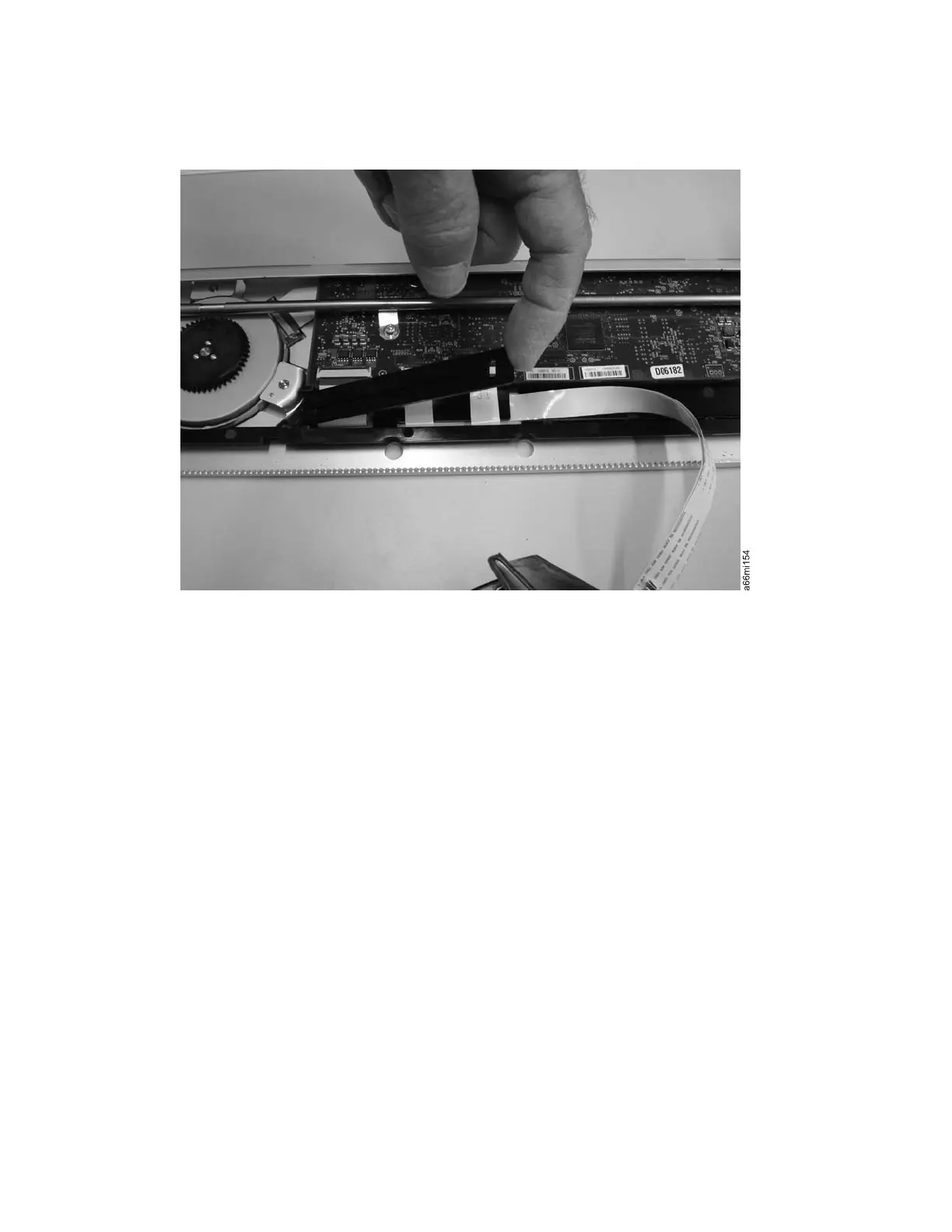

Figure 8-78. Lift the cable protector
8-74 TS3310 Tape Library Maintenance Information
