4. Once detached from the M2 Robot Assembly, position the Picker Assembly next
to the M2 Robot Assembly so that the flex cable is not stressed, being careful
not to kink or crease the cable.

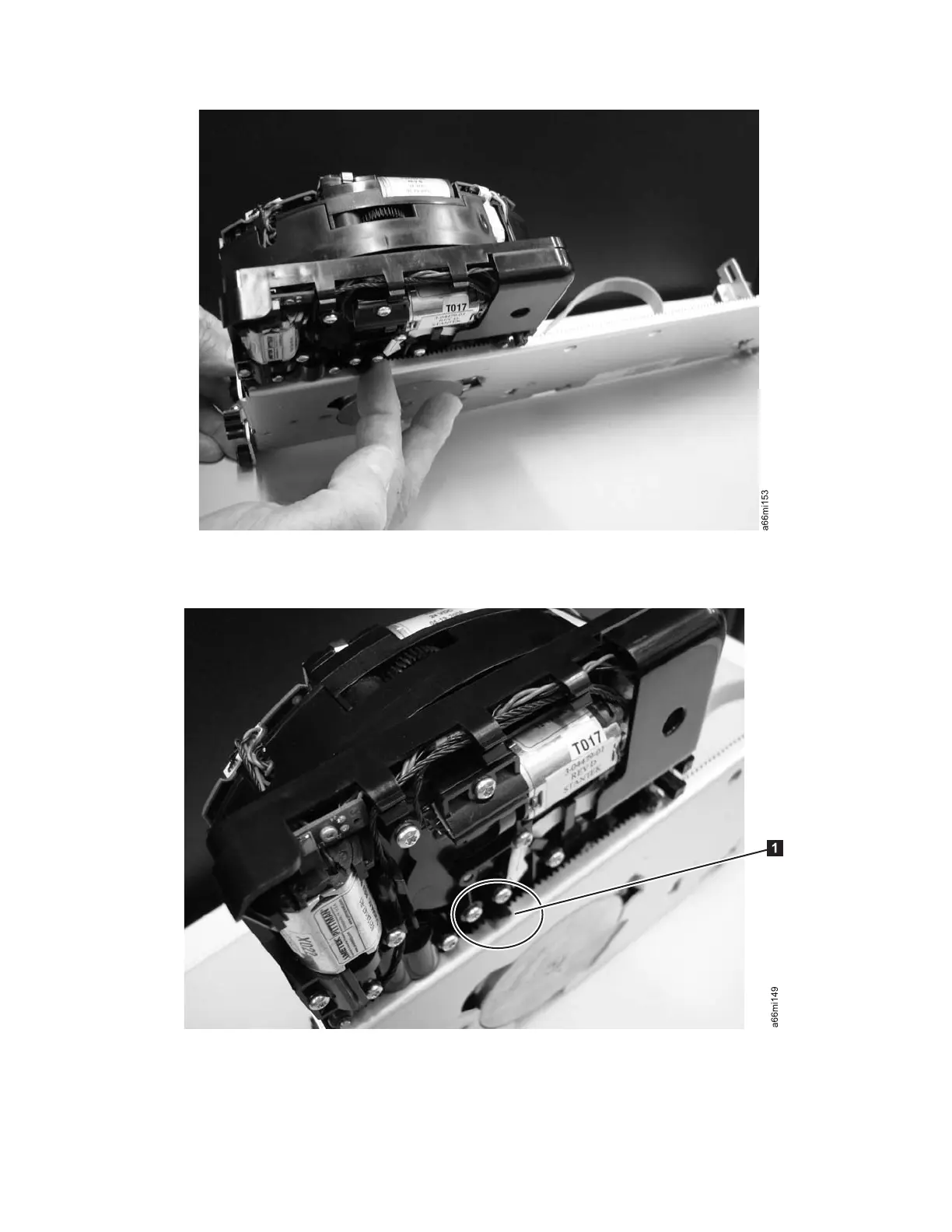

Figure 8-76. Press the release lever
Figure 8-77. Close-up of the release lever
Chapter 8. Add, Check, Adjust, Remove, and Replace Procedures 8-73
