1 front Y-rail 3 Y-rail (this end up)
2 rear Y-rail 4 squeeze here to release
b. From the front of the library, find the Y-rail release mechanism, which is
located on the left side of the control module. Squeeze the handle of the
Y-rail release mechanism, lift it, and release it so it locks in place.
1
2
3
4
a77qs036

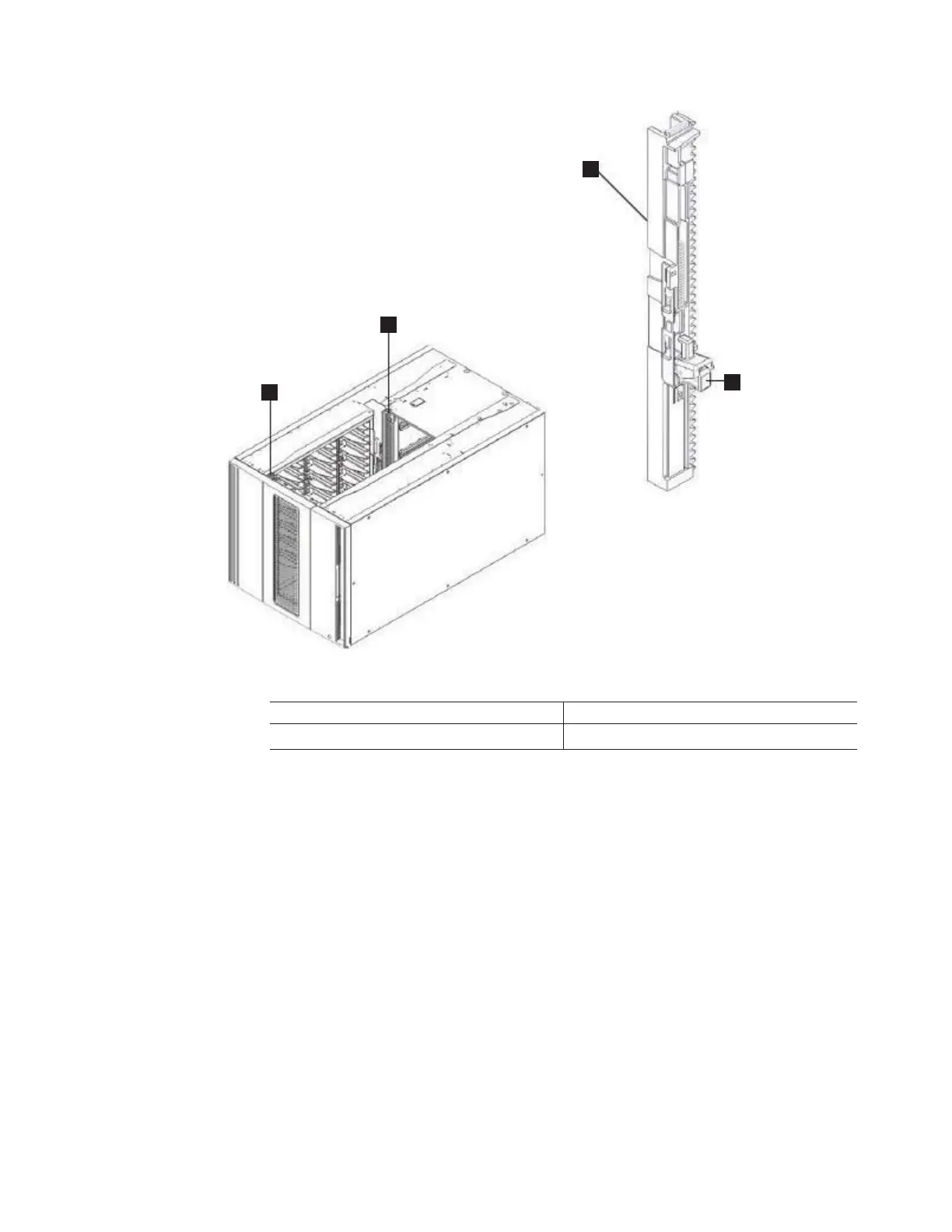

Figure 8-5. Placing gear rack in Up position
Chapter 8. Add, Check, Adjust, Remove, and Replace Procedures 8-9
|
|
|
|
|
||
||
|
|
|
|
|
