Replacing the I/O Station Safety Flap in a Control Module (5U)
Perform “Removing the I/O Station Safety Flap from a Control Module (5U)” on
page 8-37 in the reverse order. When installing the bottom flap, position the spring
(1 in Figure 8-40) as shown.
a66mi111
1

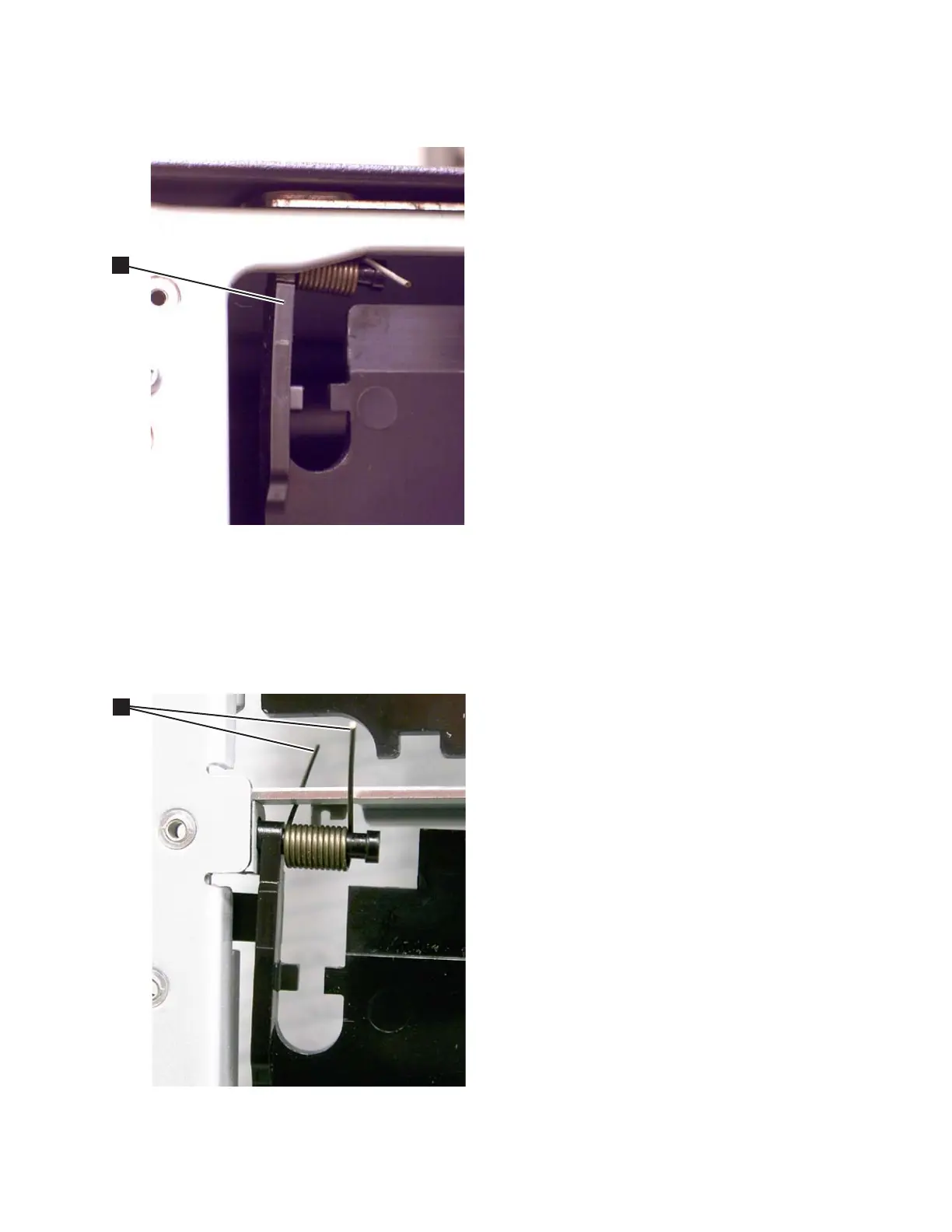

Figure 8-39. I/O Safety Flap Pivot Pin, Removed
a66mi112
1
Figure 8-40. I/O Station Safety Flap Bottom Spring position
Chapter 8. Add, Check, Adjust, Remove, and Replace Procedures 8-39
