IBM TS3310 User Manual

4. Slightly push up and pinch the gear rack locking mechanism (1 in
Figure 8-120) to unlock the gear rack. The gear rack is spring-loaded against the
tab and will be removed through the bottom of the module.
5. While pinching the gear rack locking mechanism (2 in Figure 8-120), push the
gear rack down then release your hold on the locking mechanism.
6. Remove the gear rack by pulling the black tab (1 in Figure 8-121 on page
8-110) and the gear rack locking mechanism (3 in Figure 8-121 on page 8-110)
through the keyhole slots.
Note: Don't lose the spring (2 in Figure 8-121 on page 8-110) that is recessed
in the gear rack slot.
a66mi007
1
2
3

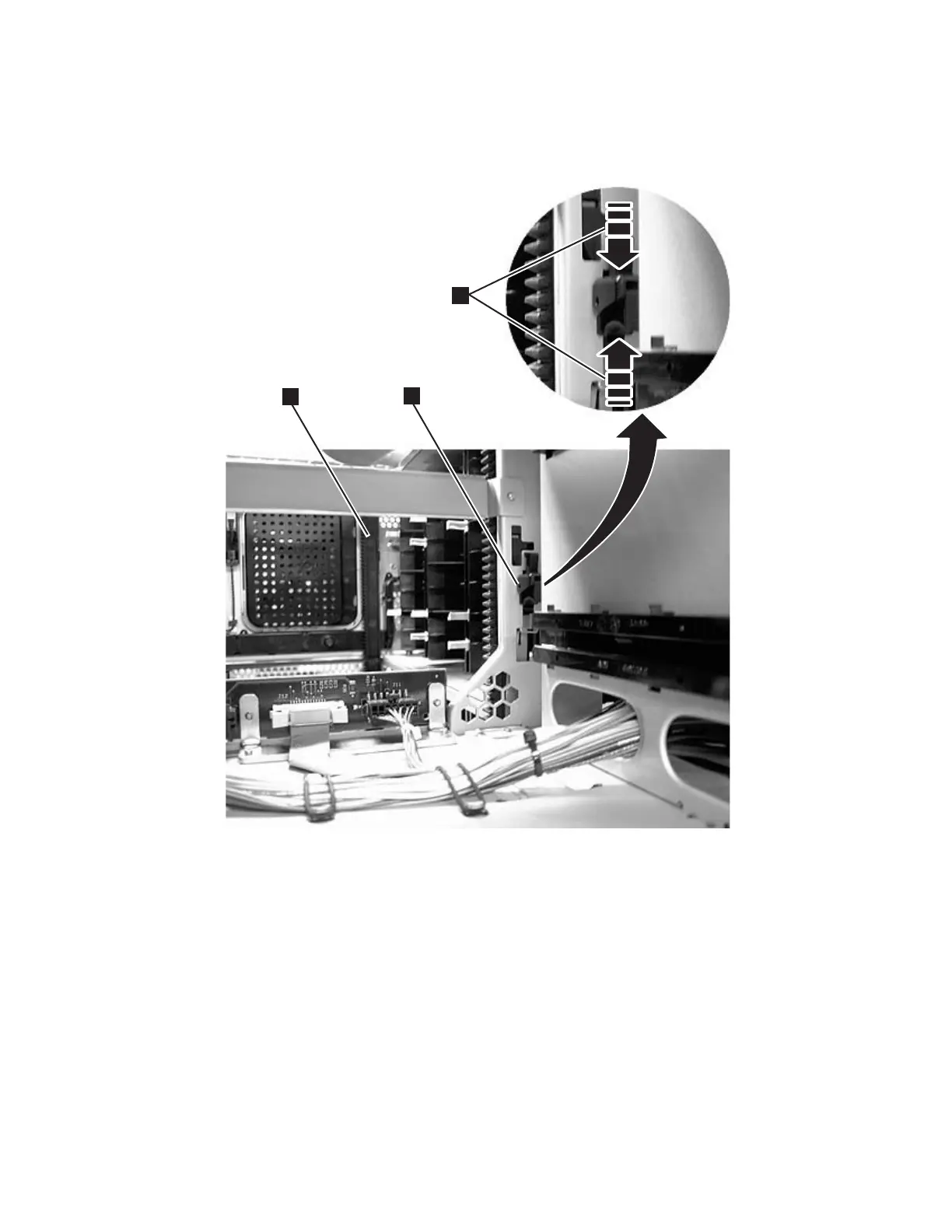

Figure 8-120. Removing a gear rack
Chapter 8. Add, Check, Adjust, Remove, and Replace Procedures 8-109
