3. While pinching the gear rack locking mechanism, push up on the gear rack,
then release your hold on the locking mechanism.
4. Bend the small metal tab (1 in Figure 8-119) in slightly to prevent the gear
rack from moving down too far.
5. Replace the bottom cover of the module, if necessary.
6. Return the module to its correct, upright position.
Removing a Rear Gear Rack
1. Lay the library module on the left side (from front).
2. Remove the top and bottom covers of the module, if necessary.
3. There is a small metal tab in the chassis frame (1 in Figure 8-118 on page
8-107) that prevents the gear rack from falling down too far when the locking
mechanism is released. Bend the tab out slightly so the gear rack can be
removed.
1
2
3
4
a66mi059

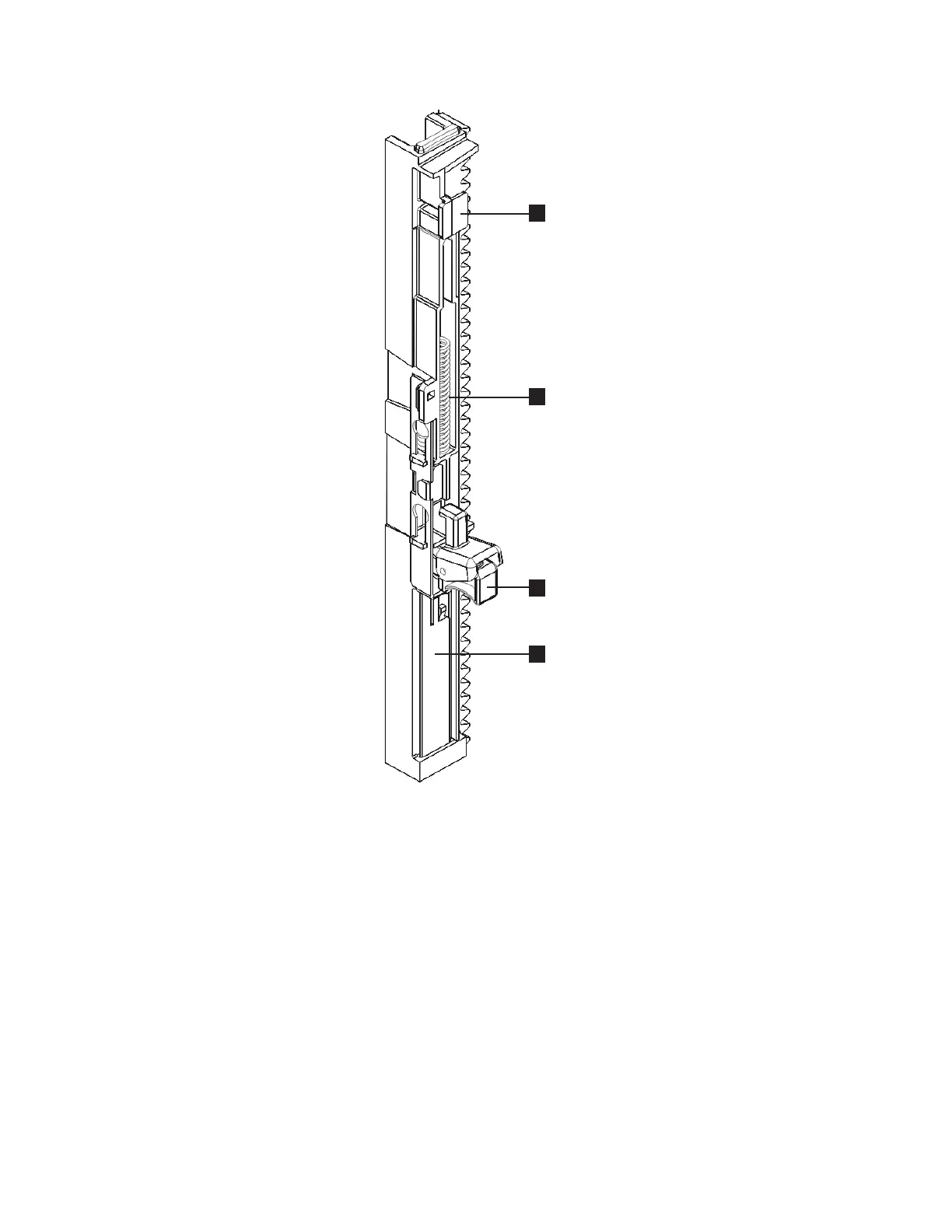

Figure 8-119. Gear rack (detail)
8-108 TS3310 Tape Library Maintenance Information

IBM TS3310 Specifications

General

Form Factor	Rack-mountable
Tape Technology	LTO Ultrium
Product Type	Tape Library
Interface	Fibre Channel
Expansion	Expandable with additional modules
Supported Tape Technology	LTO Ultrium 5, LTO Ultrium 6
Weight	120 lb (54.4 kg) (fully configured)
Power Supply	Dual redundant power supplies
Operating Temperature	41°F to 95°F (5°C to 35°C)
Non-operating Temperature	-40°F to 140°F (-40°C to 60°C)
Humidity	20% to 80% non-condensing
