IBM TS3310 User Manual

The following menu tree shows all functions available from the Operator panel
interface.
Table 4-1. Tape Library Operator Panel Menu Tree
–Setup –Operations –Tools ─Service
–Logical Library Mgmt –Move Media –Operator Interventions –Drives
–User Mgmt –Insert Media –Drive Mgmt –System
–Drive Settings –Remove Media –Drive Info
–Licenses –Insert Cleaning Media –About Library
–Date & Time –Remove Cleaning Media –Service
–Network Mgmt –Logical Library Mode –Internal Network
–Control Path –Load Drive –System Settings
–Unload Drive –Security
–Change Drive Mode –Display Settings
–Lock I/O Station —Service Login only—
–Shutdown –Factory Defaults
–Library Tests*
*Library Tests will include Installation and Verification Test (IVT) for libraries built after July 1, 2008 with serial
numbers with last four digits 8609 and above.
Web User Interface (UI)
The Web UI is accessible from a web browser. The System Storage TS3310 web
user interface supports Mozilla Firefox
™
version 1.0.6 and above, and Microsoft
®
Internet Explorer
™
version 6.0 and above.
a66mi066

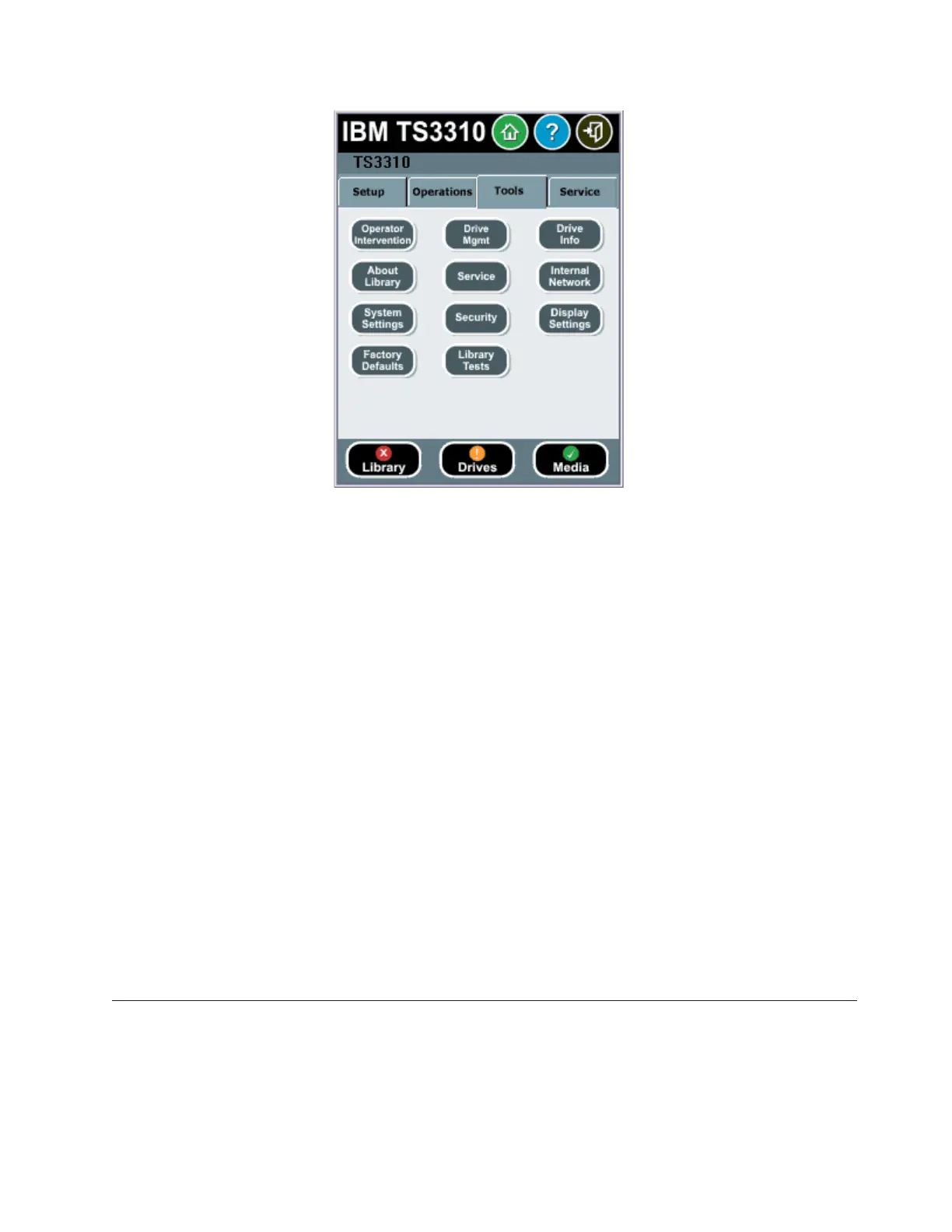

Figure 4-7. Tools menu screen
Chapter 4. User Interfaces 4-7
|
|
|

IBM TS3310 Specifications

General

Form Factor	Rack-mountable
Tape Technology	LTO Ultrium
Product Type	Tape Library
Interface	Fibre Channel
Expansion	Expandable with additional modules
Supported Tape Technology	LTO Ultrium 5, LTO Ultrium 6
Weight	120 lb (54.4 kg) (fully configured)
Power Supply	Dual redundant power supplies
Operating Temperature	41°F to 95°F (5°C to 35°C)
Non-operating Temperature	-40°F to 140°F (-40°C to 60°C)
Humidity	20% to 80% non-condensing
