2) Slide the picker over the sheet metal edge on the M2 Robot Assembly, as
shown in Figure 8-106
4. Lower and latch the Picker Assembly to the M2 Robot Assembly.

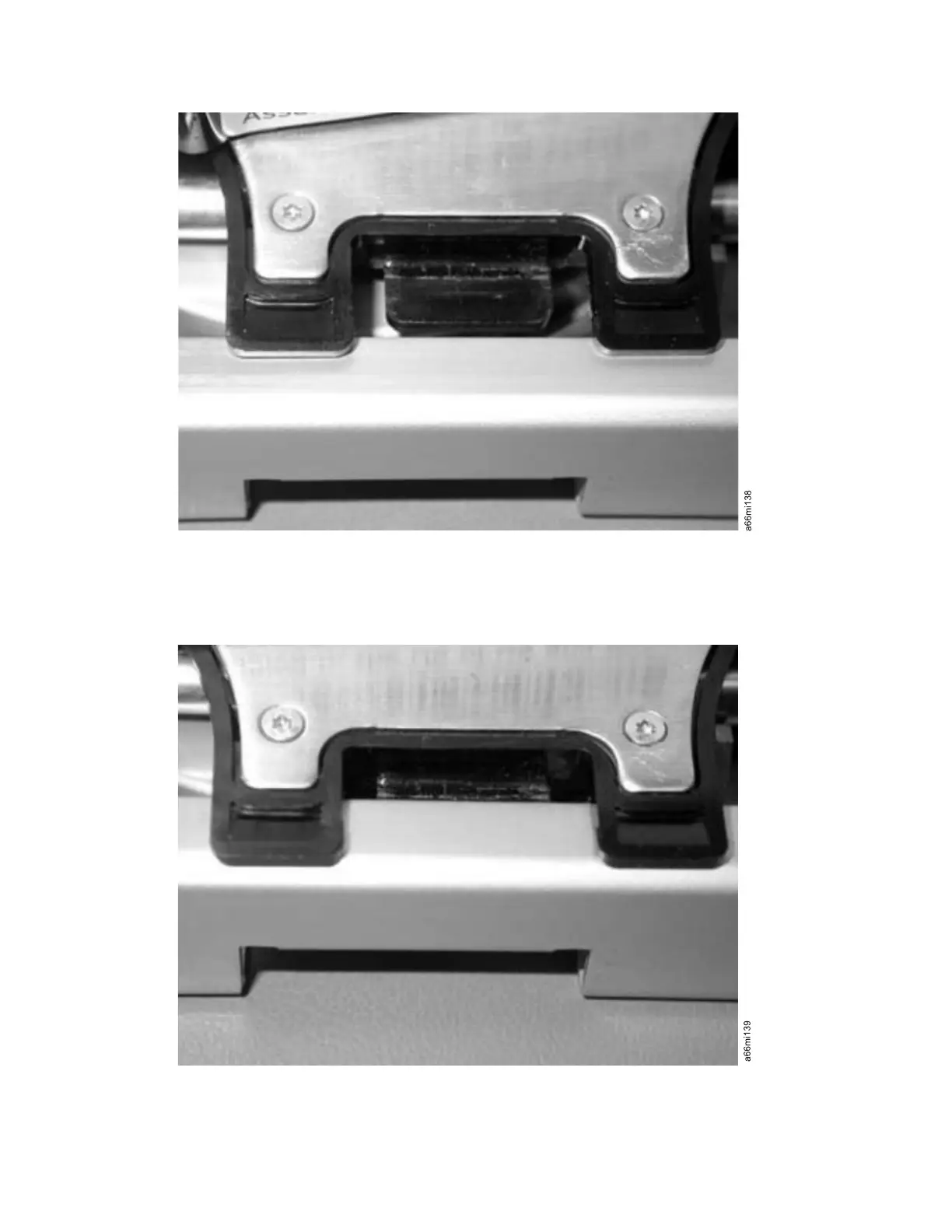

Figure 8-105. Align slot to the sheet metal edge
Figure 8-106. Slide slot over edge
