a. Locate the release level on the underside of the Picker Assembly. While
holding the release lever in the forward position, lower the Picker Assembly
onto the M2 Robot Assembly. (See Figure 8-107).
b. Two rollers on the Picker Assembly align with two slots in the M2 Robot
Assembly. (See Figure 8-108 on page 8-96). Once the rollers are resting on
the M2 Robot Assembly, release the lever.

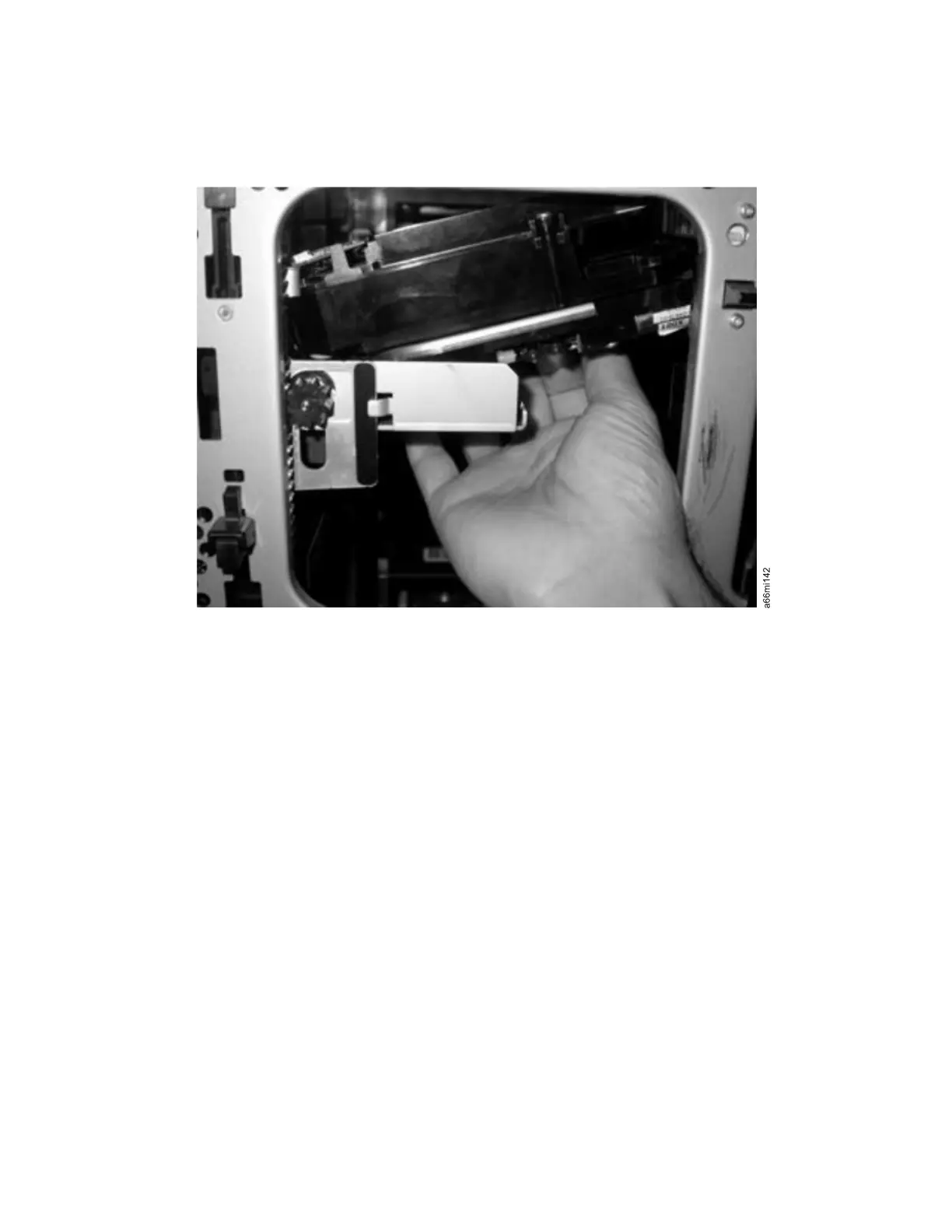

Figure 8-107. Lower the Picker Assembly onto the M2 Robot Assembly
Chapter 8. Add, Check, Adjust, Remove, and Replace Procedures 8-95
