IBM TS3310 User Manual

Replacing the Picker Assembly onto the M2 Robot Assembly
Outside of a Library
1. Place the Picker Assembly adjacent to the M2 Robot Assembly on a bench.
2. Connect the flex cables to the Robot Controller Board.
a. Slide the cables under the plastic guide (see Figure 8-81 on page 8-77).

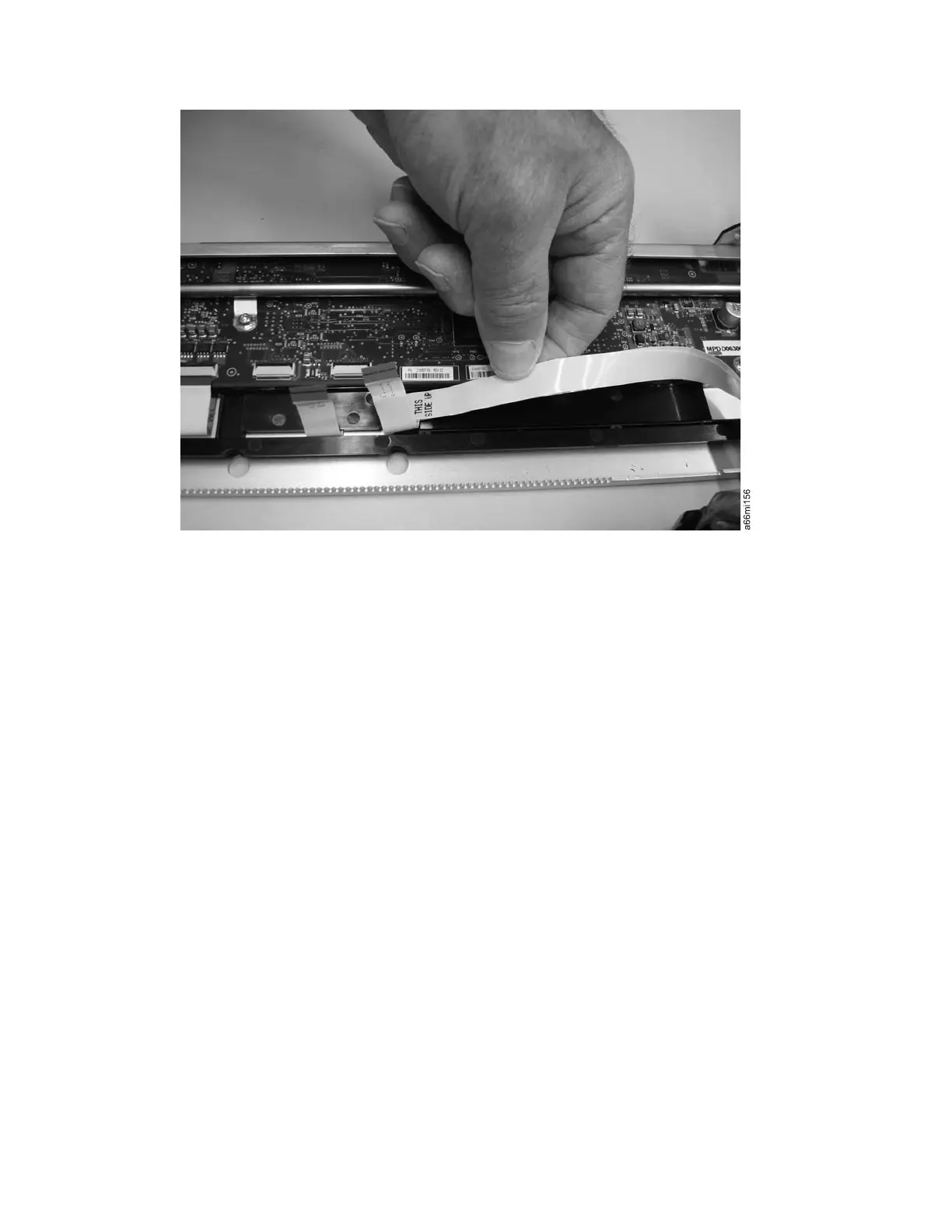

Figure 8-80. Slide cable to the rear
8-76 TS3310 Tape Library Maintenance Information

IBM TS3310 Specifications

General

Form Factor	Rack-mountable
Tape Technology	LTO Ultrium
Product Type	Tape Library
Interface	Fibre Channel
Expansion	Expandable with additional modules
Supported Tape Technology	LTO Ultrium 5, LTO Ultrium 6
Weight	120 lb (54.4 kg) (fully configured)
Power Supply	Dual redundant power supplies
Operating Temperature	41°F to 95°F (5°C to 35°C)
Non-operating Temperature	-40°F to 140°F (-40°C to 60°C)
Humidity	20% to 80% non-condensing
